The Rhodes K2230R Ch= 21K20

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1953 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
342877

- alternative name: Chicago Radio Lab

Schematics

The Rhodes K2230R Ch= 21K20; Zenith Radio Corp.; (ID = 3116970) Television — Zenith Radio Corp.; The Rhodes K2230R Ch= 21K20 (3)

The Rhodes K2230R Ch= 21K20; Zenith Radio Corp.; (ID = 3116971) Television — Zenith Radio Corp.; The Rhodes K2230R Ch= 21K20 (3)

The Rhodes K2230R Ch= 21K20; Zenith Radio Corp.; (ID = 3116972) Television — Zenith Radio Corp.; The Rhodes K2230R Ch= 21K20 (3)

The Rhodes K2230R Ch= 21K20; Zenith Radio Corp.; (ID = 3116973) Television — Zenith Radio Corp.; The Rhodes K2230R Ch= 21K20 (3)

The Rhodes K2230R Ch= 21K20; Zenith Radio Corp.; (ID = 3116974) Television — Zenith Radio Corp.; The Rhodes K2230R Ch= 21K20 (3)

The Rhodes K2230R Ch= 21K20; Zenith Radio Corp.; (ID = 3116975) Television — Zenith Radio Corp.; The Rhodes K2230R Ch= 21K20 (3)

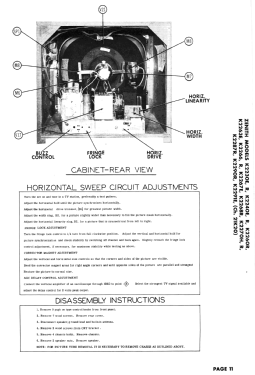

The Rhodes K2230R Ch= 21K20; Zenith Radio Corp.; (ID = 3116976) Television — Zenith Radio Corp.; The Rhodes K2230R Ch= 21K20 (3)

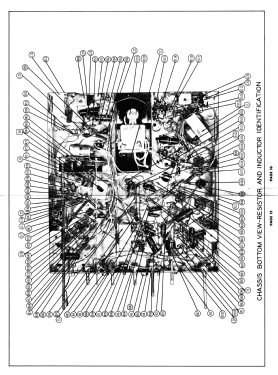

The Rhodes K2230R Ch= 21K20; Zenith Radio Corp.; (ID = 3116977) Television — Zenith Radio Corp.; The Rhodes K2230R Ch= 21K20 (3)

The Rhodes K2230R Ch= 21K20; Zenith Radio Corp.; (ID = 3116978) Television — Zenith Radio Corp.; The Rhodes K2230R Ch= 21K20 (3)

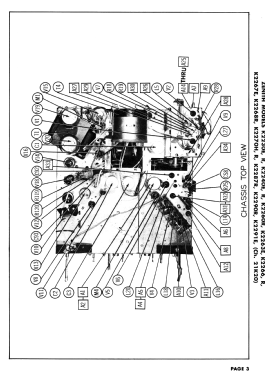

The Rhodes K2230R Ch= 21K20; Zenith Radio Corp.; (ID = 3116979) Television — Zenith Radio Corp.; The Rhodes K2230R Ch= 21K20 (3)

The Rhodes K2230R Ch= 21K20; Zenith Radio Corp.; (ID = 3116980) Television — Zenith Radio Corp.; The Rhodes K2230R Ch= 21K20 (3)

The Rhodes K2230R Ch= 21K20; Zenith Radio Corp.; (ID = 3116981) Television — Zenith Radio Corp.; The Rhodes K2230R Ch= 21K20 (3)

The Rhodes K2230R Ch= 21K20; Zenith Radio Corp.; (ID = 3116982) Television — Zenith Radio Corp.; The Rhodes K2230R Ch= 21K20 (3)

The Rhodes K2230R Ch= 21K20; Zenith Radio Corp.; (ID = 3116983) Television — Zenith Radio Corp.; The Rhodes K2230R Ch= 21K20 (3)

The Rhodes K2230R Ch= 21K20; Zenith Radio Corp.; (ID = 3116984) Television — Zenith Radio Corp.; The Rhodes K2230R Ch= 21K20 (3)

The Rhodes K2230R Ch= 21K20; Zenith Radio Corp.; (ID = 3116969) Television — Zenith Radio Corp.; The Rhodes K2230R Ch= 21K20 (2)
Picture from service manual.

The Rhodes K2230R Ch= 21K20; Zenith Radio Corp.; (ID = 2834372) Television — Zenith Radio Corp.; The Rhodes K2230R Ch= 21K20 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
21

Valves / Tubes
6BK7 6U8 6CB6 6CB6 6CB6 6U8 12AU7 12AX7 6BN6 6BK5 6BE6 6AH4GT 6AQ7GT 6SN7GT 6CD6G 6V3 1B3GT 1X2A 5U4G 5U4G 21FP4A

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: The Rhodes K2230R Ch= 21K20 - Zenith Radio Corp.; Chicago,

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
25.125 x 25.31 x 19.625 inch / 638 x 643 x 498 mm

Notes
Zenith model K2230R is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 21K20 VHF tuner S-18770 and picture tube 21FP4A.
Automatic One-Knob Tuning.Finish: Mahogany color Pyroxylincovering. Also in Blonde available as Model Zenith The Rhodes K2230E

Mentioned in
-- Original prospect or advert (One day you will own a Zenith TV 1952)

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 187, folder 14, dated 12-52)

Author
Model page created by Franz Scharner. See "Data change" for further contributors.
