Trans-Oceanic (TransOceanic) A600 Ch= 6A40 black
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68758
-
- alternative name: Chicago Radio Lab
Chassis 6A40
Zenith TO A600
Transoceanic A600 1958 Ebay seller unisale

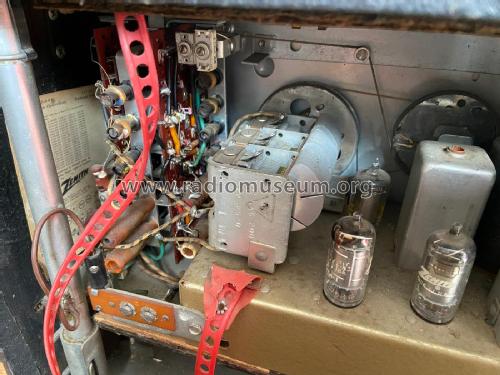

Fairly clean chassis top.

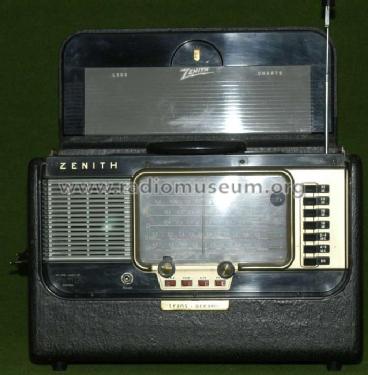

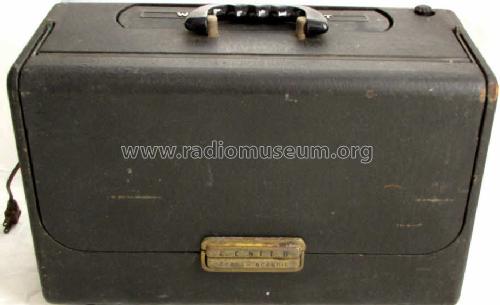

Case closed, front view.
Antenna top showing retaining clip.
Dial closeup.
Left side of chassis showing tuning slugs.
Il mio esemplare di Zenith A600

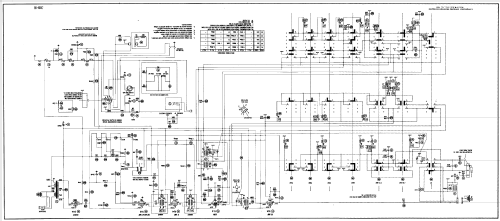

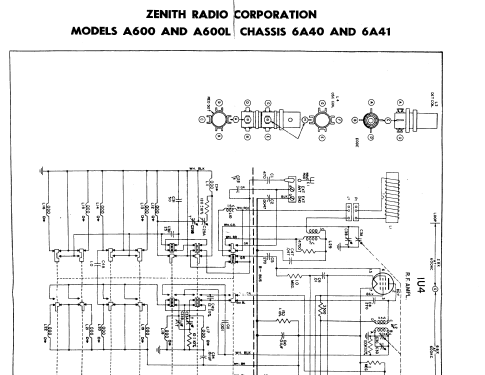

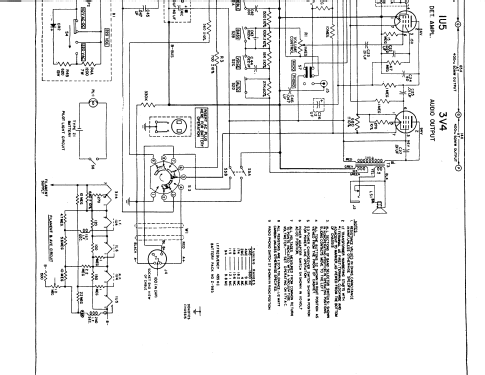

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Line / Batteries (any type) / 9 & 90; 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 10 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Trans-Oceanic A600 Ch= 6A40 [black] - Zenith Radio Corp.; Chicago,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 17 x 11 x 8 inch / 432 x 279 x 203 mm
- Notes
- Bryant/Cones; See also the article here.
Siehe auch den Artikel hier.
Si veda anche l'articolo in questa pagina.
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Price in first year of sale
- 140.00 $
- External source of data
- Bryant/Cones
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
- Other Models
-
Here you find 4505 models, 4101 with images and 3631 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Zenith Radio Corp.; Chicago, IL
Collections
The model Trans-Oceanic (TransOceanic) A600 is part of the collections of the following members.
- Eric Adams (USA)
- Jacky Blaise (B)
- Gary Brandenburger (USA)
- David Erali (USA)
- Francisco Gallego (E)
- Michael Gnaedig-Fischer (MEX)
- Andrew Henni (USA)
- Masanori Hoki (J)
- Biagio Laureti (I)
- Charles Maulding (USA)
- Roberto Miravalle (I)
- Jacques-André Ramelet (CH)
- Julio Alberto Sanz-Litardi (RA)
- Serioja Tatu (CDN)
- Jean de Bellefeuille (USA)
Forum contributions about this model: Zenith Radio Corp.;: Trans-Oceanic A600 Ch= 6A40
Threads: 1 | Posts: 1
RMorg: Picture administration
Battery Zenith Z985
Hello Sandor!
Please create separate model page for the battery.
It is not part of Trans-Oceanic series only (for example
the 220 V adapter is for Trans-Oceanic only) ..
Many USA radios are using that standard type of 9/90V battery.
same like Eveready 752 etc.
Kind regards
Karlheinz
.....................................
Dear Karlheinz!
The night I looked around the site. Strange that there's still a lot of radio station Z985 in the plant (and other battery types). Of course they are not filled with Hungary. Can not find strange, interesting and discriminatory, it is always a collection of Hungarian proposals if there is a problem? I am sad and disappointed.
BR,
STS
Sándor Selyem-Tóth, 11.Jun.12
