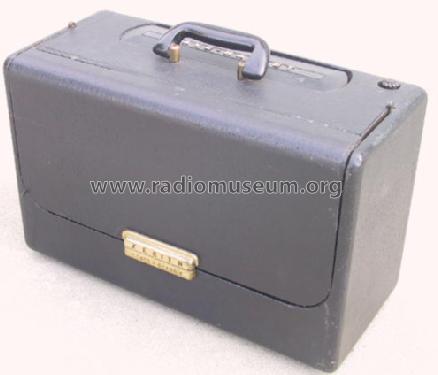

Trans-Oceanic (TransOceanic) L600 Ch= 6L40 black

• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68757

• • alternative name: Chicago Radio Lab

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1U4 1L6 1U4 1U5 3V4 50A1

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Line / Batteries (any type) / Either AC: 110-120V or DC: 110-120V or Batteries: 9 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Trans-Oceanic L600 Ch= 6L40 [black] - Zenith Radio Corp.; Chicago,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 17 x 11 x 8 inch / 432 x 279 x 203 mm

• Notes
• Conelrad Markings (Civil Defense, CD) on the dial at 640 and 1240 kHz.

  BC/6xSW. See also the article here.
  Siehe auch den Artikel hier.
  Si veda anche l'articolo in questa pagina.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Price in first year of sale
• 140.00 $

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
