Trans-Oceanic Royal 1000 Ch= 9CT40Z2
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1959/1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 285451
-
- alternative name: Chicago Radio Lab
- Number of Transistors
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Dry Batteries / D: 8 x 1.5 & dial lamp 1 X 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Various materials
- from Radiomuseum.org

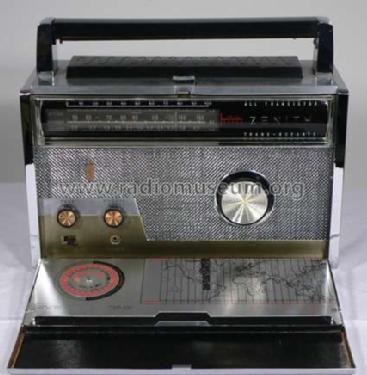

- Model: Trans-Oceanic Royal 1000 Ch= 9CT40Z2 - Zenith Radio Corp.; Chicago,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 320 x 267 x 122 mm / 12.6 x 10.5 x 4.8 inch
- Notes
-
Zenith transistor numbers in the same order :
121-44 121-48 121-49 121-73 121-74 121-64 121-46 121-47 121-47
See different chassis variants of the Zenith Transistorized Shortwave Portable Radio series Royal 1000 like the 9AT40, the 9CT..., the 9HT ... and the Trans-Oceanic Royal 1000D and the Trans-Oceanic Royal 1000-1 Ch= 9HT40Z8 which was the last model of the series 1000. There is an ad in "The National Geographic Magazine" 1957, December and we beleive the first Trans-Oceanic 1000 was introduced in November 1957.
- Net weight (2.2 lb = 1 kg)
- 5.9 kg / 12 lb 15.9 oz (12.996 lb)
- Author
- Model page created by Michael Gnaedig-Fischer. See "Data change" for further contributors.
