Trans-Oceanic (TransOceanic) B600 Ch=6A40 black
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1959–1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68760
-
- alternative name: Chicago Radio Lab

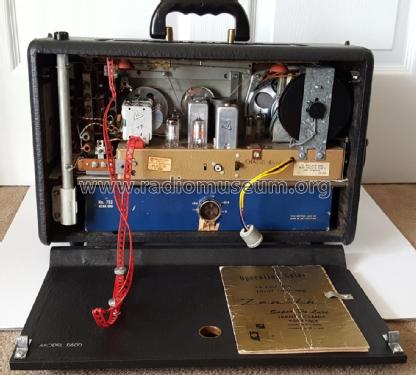

picture taken by me

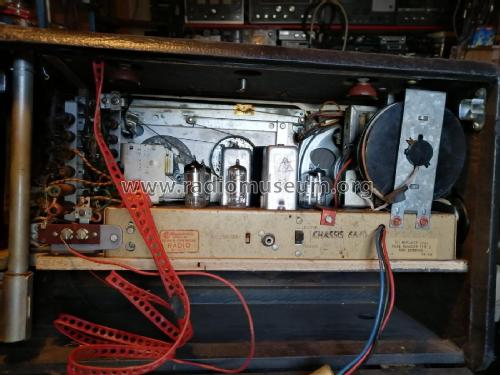

image with courtesy from Tom Jahn
image with courtesy from Tom Jahn side-view
Operating by modern batteries.
Zenith Transoceanic B600
Zenith Transoceanic B600 original box!
Picture from 1960 Zenith sales brochure
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Line / Batteries (any type) / 9 & 90; 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Trans-Oceanic B600 Ch=6A40 [black] - Zenith Radio Corp.; Chicago,
- Dimensions (WHD)
- 17 x 11 x 8 inch / 432 x 279 x 203 mm
- Notes
- Bryant/Cones; BC/6xSW; the last tube model portable radio made in the USA. See also the article here.
Siehe auch den Artikel hier.
Si veda anche l'articolo in questa pagina.
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Price in first year of sale
- 140.00 $
- External source of data
- Konrad Birkner
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
