S7003 Wireless Record Player
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1939
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 68325
-
- alternative name: Chicago Radio Lab

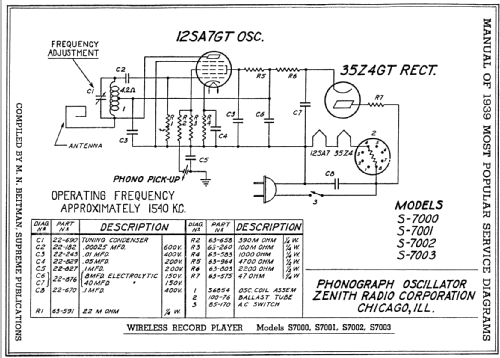

Beitman

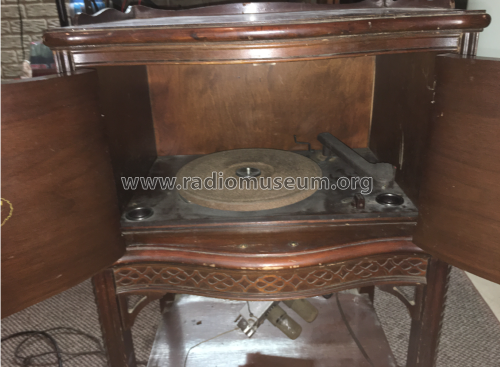

Picture from Carol Rooney
Image copy from Zenith folder

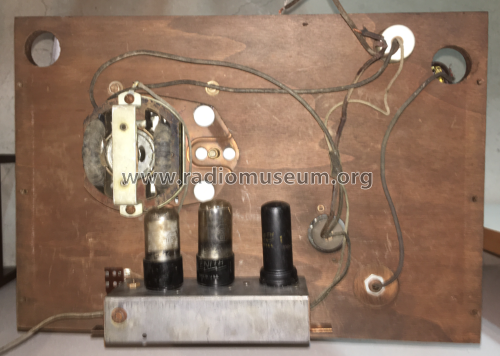

Picture from Carol Rooney
Picture from Carol Rooney
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Number of Transistors
- Semiconductors
- 100-76
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- - For headphones or amp.
- from Radiomuseum.org
- Model: S7003 Wireless Record Player - Zenith Radio Corp.; Chicago,
- Notes
- Wireless record player. Ballast tube 100-76.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Other Models
-
Here you find 4496 models, 4101 with images and 3615 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Zenith Radio Corp.; Chicago, IL
Collections
The model S7003 Wireless Record Player is part of the collections of the following members.
