X2222E Ch= 17X20

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1955/1956

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
296328

- alternative name: Chicago Radio Lab

Schematics

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2735139) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2735140) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2735141) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2735142) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2735143) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2735144) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2735145) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2735146) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2735147) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2735148) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2735149) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2735150) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2735151) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2735152) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2735153) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2735154) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2735155) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2186850) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2186851) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2186852) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2186853) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2186854) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2186855) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2186856) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2186857) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

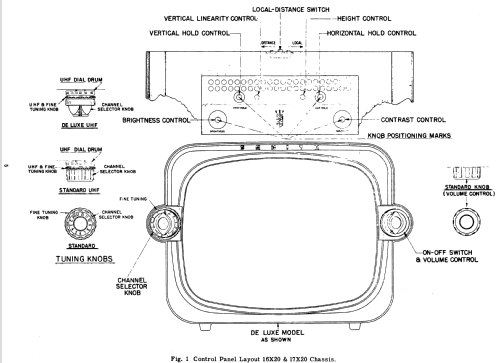

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2186858) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2186859) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2186860) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2186861) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2186862) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (3)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2349673) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (1)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2366374) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (1)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2367300) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (1)

X2222E Ch= 17X20; Zenith Radio Corp.; (ID = 2368732) Television — Zenith Radio Corp.; X2222E Ch= 17X20 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
17

Valves / Tubes
6BK7A 6U8 6CB6 6CB6 6AU8 6AU8 6BN6 6AQ5 6BY6 12B4A 6AL5 6SN7GTB 6BQ6GT 6AX4GT 1B3GT 5U4GA 21ALP4 or 21ALP4A

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 cycle 110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

from Radiomuseum.org
Model: X2222E Ch= 17X20 - Zenith Radio Corp.; Chicago,

Shape
Tablemodel, low profile (big size).

Notes

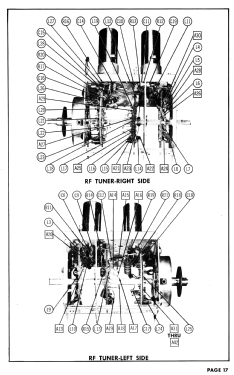

The ZENITH model X2222E is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, equipped with VHF-tuner S-22778, chassis 17X20 and picture tube 21ALP4 or 21ALP4A.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 306 Folder 14 dated 2-56)

Literature/Schematics (2)
Zenith Service Manual - 1956 Television Receivers TV-15

Author
Model page created by John Kusching. See "Data change" for further contributors.
