X2247RZ Ch= 17T22

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1955/1956

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
296852

- alternative name: Chicago Radio Lab

Schematics

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199847) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199848) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199849) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199850) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199851) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199852) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199853) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199854) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199855) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199856) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

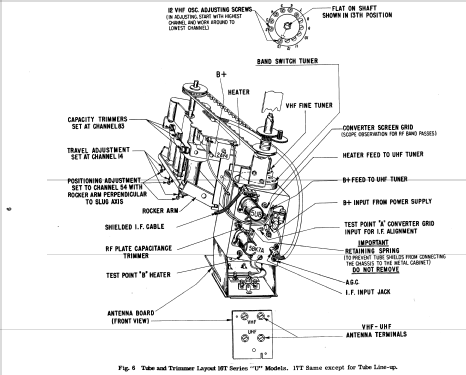

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199857) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199858) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199859) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199860) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199861) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199862) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199863) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199864) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199865) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199866) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199867) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199868) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199869) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199870) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199871) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199872) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199873) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199874) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199875) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2199876) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (3)

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2342469) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (2)
Copy from Aldo Canepa-RM.

X2247RZ Ch= 17T22; Zenith Radio Corp.; (ID = 2237260) Television — Zenith Radio Corp.; X2247RZ Ch= 17T22 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
17

Valves / Tubes
6BK7A 6U8 6CB6 6CB6 6AU8 6AU8 6BN6 6AQ5 6BY6 or 6CS6 12B4 6AL5 6SN7GT or 6SN7GTA or 6SN7GTB 6BQ6GA or 6BQ6GT 6AX4GT 1B3GT 5U4GA 21ALP4 or 21ALP4A

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 cycles, 110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

from Radiomuseum.org
Model: X2247RZ Ch= 17T22 - Zenith Radio Corp.; Chicago,

Notes
The ZENITH model X2247RZ is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13 equipped with VHF-tuner S-22778, chassis 17T22 and picture tube 21ALP4 or 21ALP4A.

Literature/Schematics (1)
Zenith Service Manual - 1955 Television Receivers TV-14A

Literature/Schematics (2)
Zenith Service Manual - 1956 Television Receivers TV-15

Author
Model page created by John Kusching. See "Data change" for further contributors.
