X2258EU Ch= 19X22U

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1955/1956

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
296664

- alternative name: Chicago Radio Lab

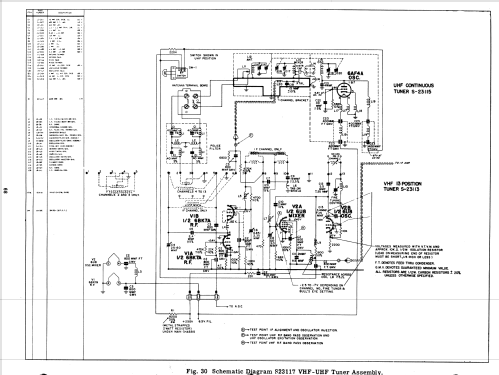

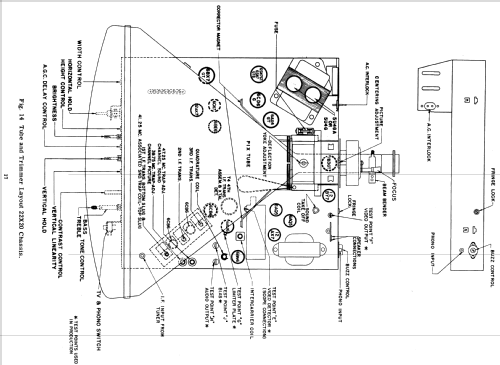

Schematics

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196618) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196619) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196620) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196621) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196622) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196623) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196624) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196625) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196626) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196628) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196629) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196630) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196631) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196632) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196633) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196634) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196635) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196636) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196637) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196639) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196640) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196641) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196642) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196643) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196644) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196645) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196646) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196647) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196648) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2196649) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (3)

X2258EU Ch= 19X22U; Zenith Radio Corp.; (ID = 2237742) Television — Zenith Radio Corp.; X2258EU Ch= 19X22U (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
20

Valves / Tubes
6BK7A 6U8 6AF4A 6CB6 6CB6 6CB6 12BY7 6AU6 6BN6 6AQ5 12AX7 6BE6 12B4 or 12B4A 6CN7 6SN7GT 6BQ6GT or 6BQ6GA or 6CU6 1B3GT 6AX4GT 5U4GA or 5U4G 21ALP4A

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60Hz, 110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

from Radiomuseum.org
Model: X2258EU Ch= 19X22U - Zenith Radio Corp.; Chicago,

Notes
The ZENITH model X2258EU is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with VHF-tuner S-23113, UHF-tuner S-23115, chassis 19X22U and picture tube 21ALP4A.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 317 Folder 15 Dated 5/56)

Literature/Schematics (2)
Zenith Service Manual - 1956 Television Receivers TV-15

Author
Model page created by John Kusching. See "Data change" for further contributors.
