X2359U Ch= 22Z20U
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 285211
-
- alternative name: Chicago Radio Lab
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 23
- Valves / Tubes
- 6BK7A 6U8 6AF4A 6CB6 6CB6 6CB6 12BY7 12AX7 6AU6 6BN6 12AX7 6AQ5 6AQ5 6BE6 6BX7GT 6CN7 6SN7GT 6CD6GA 6AU4GT 1B3GT 5U4GA 5U4GA 21ACP4A or 21AMP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycle 110-120 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: X2359U Ch= 22Z20U - Zenith Radio Corp.; Chicago,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
THE ZENITH model X2359U is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF.Equipped with VHF-tuner S-23113, UHF-tuner S-23115, chassis 22Z20U and picture tube 21ACP4A or 21AMP4A. Speakers : SP1- 10" PM , SP2 and SP3 - 3" electrostatic type.
- Literature/Schematics (1)

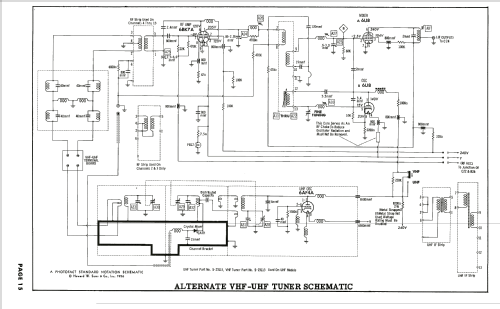

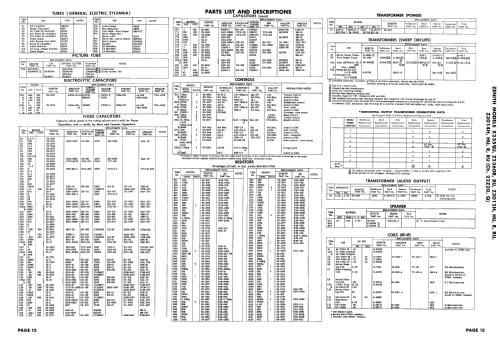

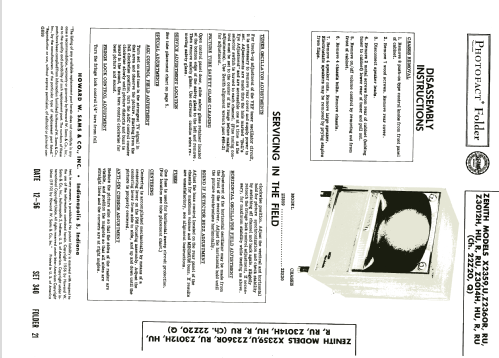

- Photofact Folder, Howard W. SAMS (Set 340 Folder 21 dated 12-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
