X2360RU Ch= 22X20U
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1955/1956
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 296606
-
- alternative name: Chicago Radio Lab
Copy from Zenith folder.

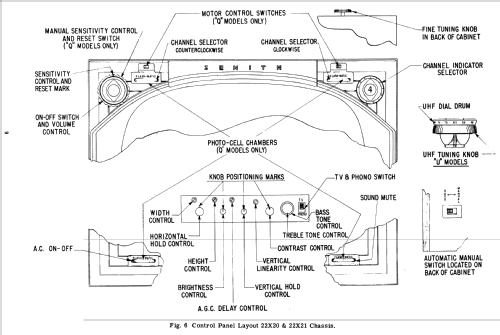

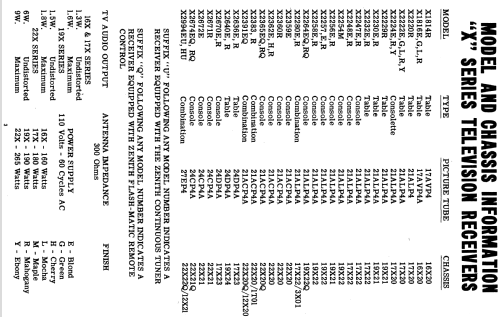

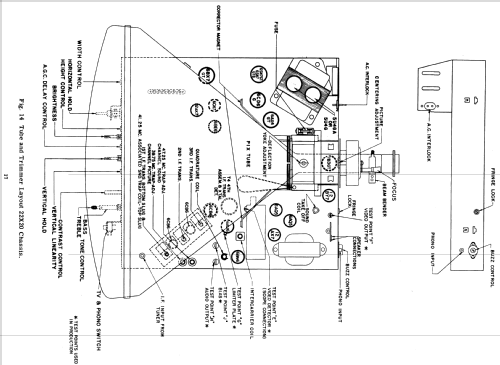

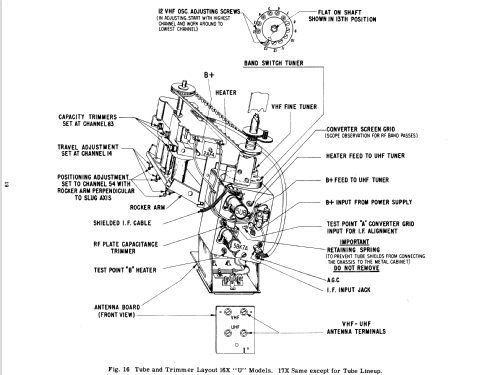

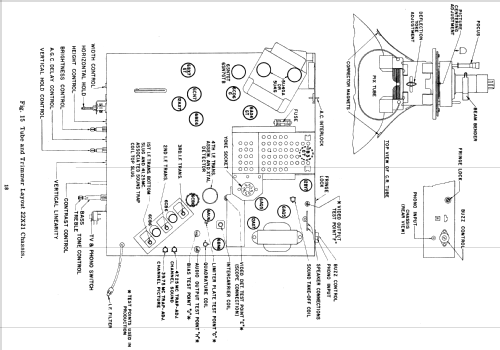

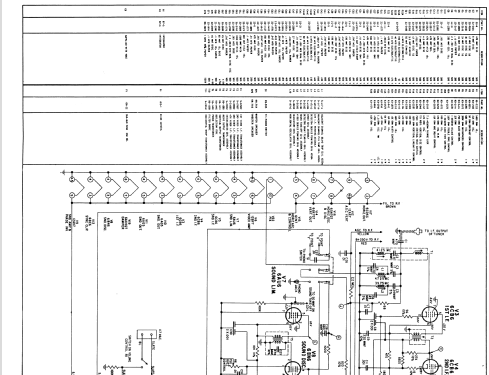

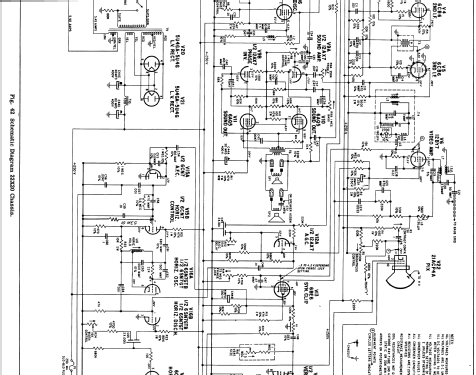

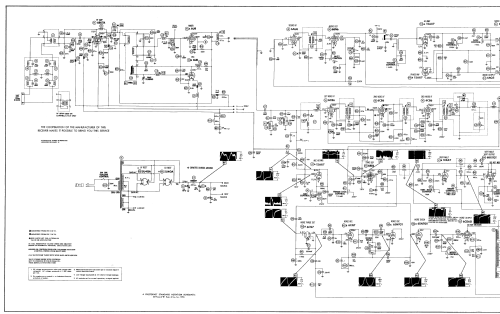

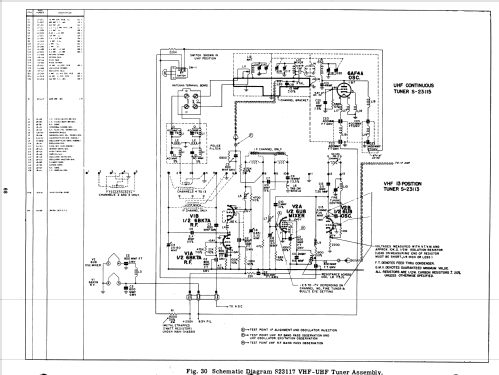

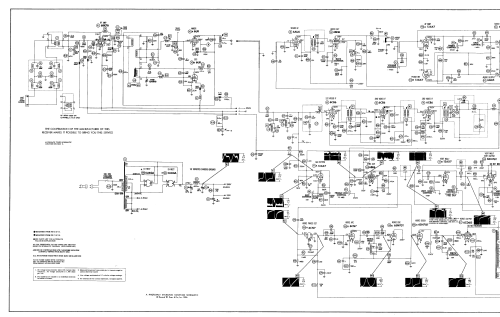

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 23
- Valves / Tubes
- 6BK7A 6U8 6AF4 or 6AF4A 6CB6 6CB6 6CB6 12BY7 6AU6 6BN6 12AX7 6AQ5 6AQ5 12AX7 6BE6 6BX7GT 6CN7 6SN7GTB or 6SN7GT 6CD6G 1B3GT 6AX4GT 5U4GA or 5U4G 5U4GA or 5U4G 21ACP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: X2360RU Ch= 22X20U - Zenith Radio Corp.; Chicago,
- Notes
-
The ZENITH model X2360RU is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with VHF-tuner S-23113, UHF-tuner S-23115, chassis 22X20U and picture tube 21ACP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 314 Folder 12 Dated 4/56)
- Literature/Schematics (2)
- Zenith Service Manual - 1956 Television Receivers TV-15
