• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1967 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127297

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12DT8 12BE6 12BA6 12BA6 12AU6 14GT8 35C5

• Main principle
• Superheterodyne (common); ZF/IF 455 / 10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

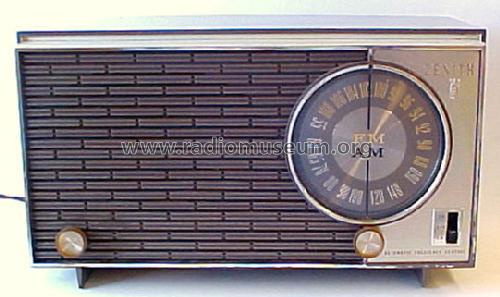

• Model: X316J Ch= 7N02 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12 x 7 x 6 inch / 305 x 178 x 152 mm

• Notes

• The Zenith X316J is an AC operated 7 tube AM/FM receiver.  Has elliptical PM 4" x 6" speaker and selectable AFC. Also has ferrite loopstick antenna for AM and uses line cord for FM antenna with provisions for use with external FM antenna.

  The following models use the same schematic and chassis:

  Model	Chassis	Cabinet Colors
  X316B	7N02	Two tone light blue
  X316J	7N02	Two tone brown
  X316W	7N02	White

  NOTE: Sams Photofacts Set 919, folder 7 covers other models that also use chassis 7N02 and so the electrical information in this Photofact may also be used for this model.

  Model X318A also uses similar schematic and chassis.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 908, folder 9 dated 9-67)

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
