X316W Ch= 7N02
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1967 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 269880
-
- alternative name: Chicago Radio Lab

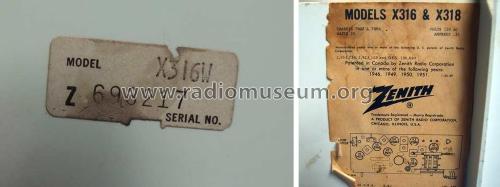

Copy from Ebay seller gj2002.
Copy from Ebay seller gj2002.
Copy from Ebay seller gj2002.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 / 10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: X316W Ch= 7N02 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 12 x 7 x 6 inch / 305 x 178 x 152 mm
- Notes
-
The Zenith X316W is an AC operated 7 tube AM/FM receiver. Has elliptical PM 4" x 6" speaker and selectable AFC. Also has ferrite loopstick antenna for AM and uses line cord for FM antenna with provisions for use with external FM antenna.
The following models use the same schematic and chassis:
Model Chassis Cabinet Colors X316B 7N02 Two tone light blue X316J 7N02 Two tone brown X316W 7N02 White NOTE: Sams Photofacts Set 919, folder 7 covers other models that also use chassis 7N02 and so the electrical information in this Photofact may also be used for this model.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 908, folder 9 dated 9-67)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
