X318A Ch= 7N02
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 223303
-
- alternative name: Chicago Radio Lab
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

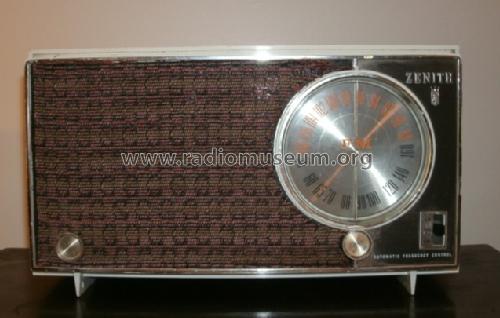

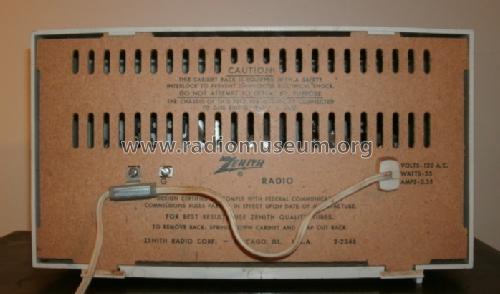

- Model: X318A Ch= 7N02 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
This model is electronically similar to model X316J.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 908, Folder 9 dated 9-67)
- Author
- Model page created by Mark Skala. See "Data change" for further contributors.
