X337W Ch= 8X02
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 161090
-
- alternative name: Chicago Radio Lab
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 7.5 inch = 19.1 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: X337W Ch= 8X02 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 15.7 x 10 x 8 inch / 399 x 254 x 203 mm
- Notes

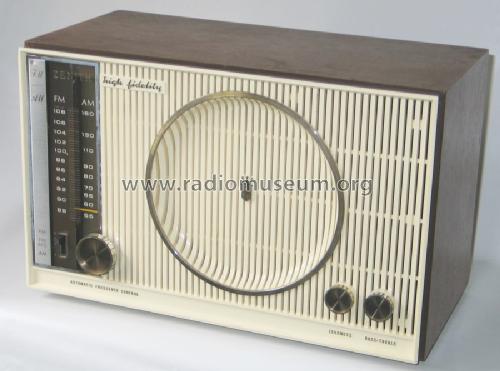

- Dual speakers (7.5 inch woofer + 3.5 inch tweeter). Silicon diode rectifier. Two 1N34A germanium diodes for AM detector and FM AFC circuit. Molded plastic front panel on wooden cabinet. Dial lamps are type #1819 (28 volt 0.04 A, T3-1/4 bayonet base).
- Circuit diagram reference
- Photofact Folder, Howard W. SAMS
- Literature/Schematics (1)
- SAMS #910, folder #9
- Author
- Model page created by Thomas Albrecht. See "Data change" for further contributors.
