X514 (the Owl) Ch= 5X06
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 315082
-
- alternative name: Chicago Radio Lab

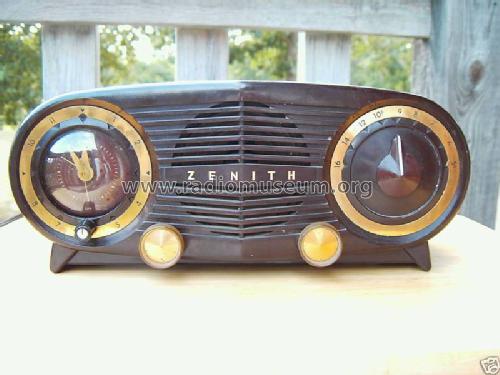

Picture from Hans Amberger.
Picture from Hans Amberger.
American Radio design Greg Mercurio
American Radio Design Greg Mercurio
American Radio Design Greg Mercurio
American Radio Design Greg Mercurio
American Radio Design Greg Mercurio
American Radio Design Greg Mercurio
Picture from Hans Amberger.
Picture from Hans Amberger.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: X514 Ch= 5X06 - Zenith Radio Corp.; Chicago,
- Dimensions (WHD)
- 13.25 x 5.375 x 6 inch / 337 x 137 x 152 mm
- Notes
-
The X514 series of "Owl" clock radios has only one knob on the clock.
The following models are identical except for cabinet color.
Model Number Cabinet Color X514 Walnut X514V Red (coral) X514W White
- Net weight (2.2 lb = 1 kg)
- 4 lb 13 oz (4.813 lb) / 2.185 kg
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 16, 1956 (page 181)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 316, Folder 17, 5-56)
- Author
- Model page created by David Erali. See "Data change" for further contributors.
