X930 Ch= 20XT20
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1967 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 296818
-
- alternative name: Chicago Radio Lab

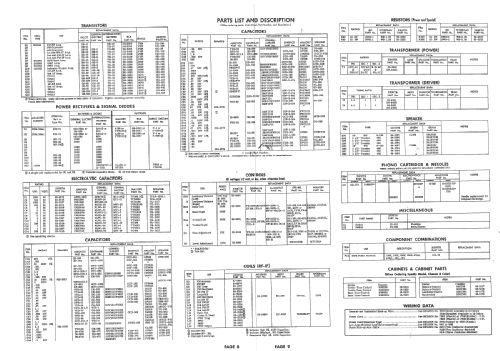

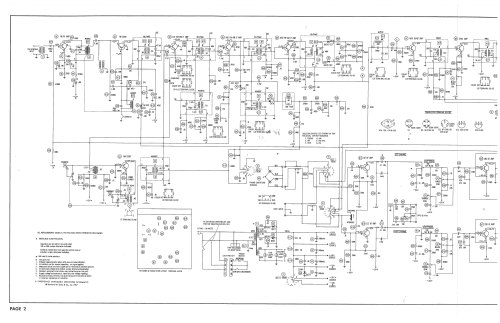

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 20
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- 7 or more Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: X930 Ch= 20XT20 - Zenith Radio Corp.; Chicago,
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 54 x 25 x 17 inch / 1372 x 635 x 432 mm
- Notes
-

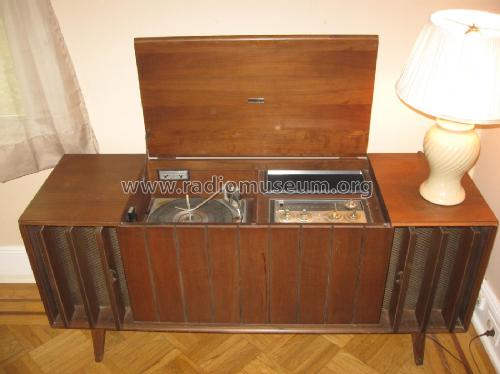

This is a Zenith Model X930 radio phonograph combination.
The radio covers the AM and FM bands. The radio chassis is model 20XT20. The radio chassis is in Photofact set 870 folder 9.
The record changer is marked Zenith but is manufactured by Voice of Music model number 1295. It has 4 speeds: 16, 33, 45, and 78 RPM. The record changer is in Photofact set 797 folder 7.
Zenith made similar models such as X932, X934, and X938 all which are also covered in Photofact set 870 folder 9.
This is a stereo model. Each end of the console cabinet has 4 speakers: one 10" woofer and three 3 1/2" tweeters. Total number of speakers is 8.
