X-1816L Ch= 16X20

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1955/1956

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
126657

- alternative name: Chicago Radio Lab

Schematics

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2774356) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2774357) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2774358) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2774359) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2774360) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2774361) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2774362) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2774363) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2774364) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2774365) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2774366) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2774367) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2774368) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2774369) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2774370) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2774371) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2774372) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2188698) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2188699) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2188700) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2188701) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2188702) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2188703) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2188704) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2188705) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2188706) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2188707) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2188708) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2188709) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2188710) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (3)

X-1816L Ch= 16X20; Zenith Radio Corp.; (ID = 2286253) Television — Zenith Radio Corp.; X-1816L Ch= 16X20 (2)
Copy from Zenith Broshure.

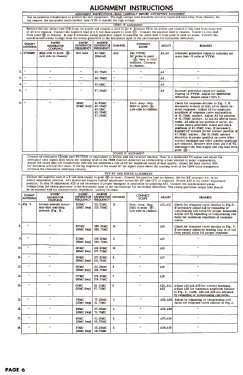

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
16

Valves / Tubes
5BK7A 5U8 3CB6 3CB6 6AU8 6AU8 3BN6 5AQ5 3BY6 or 3CS6 12B4A 3AL5 6SN7GTB 12CU6 or 12BQ6GA or 12BQ6GTB 1B3GT 12AX4GTA 17AVP4

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

from Radiomuseum.org
Model: X-1816L Ch= 16X20 - Zenith Radio Corp.; Chicago,

Shape
Tablemodel, with any shape - general.

Notes
The ZENITH model X-1816L is a 17" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with VHF-tuner S-22452, chassis 16X20 and picture tube 17AVP4.

Literature/Schematics (1)

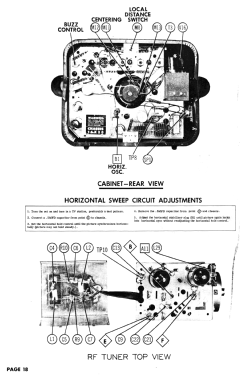

Photofact Folder, Howard W. SAMS (Set 310 Folder 14 3-1956)

Literature/Schematics (2)
Zenith Service Manual - 1956 Television Receivers TV-15

Author
Model page created by a member from A. See "Data change" for further contributors.
