• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108786

• • alternative name: Chicago Radio Lab

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

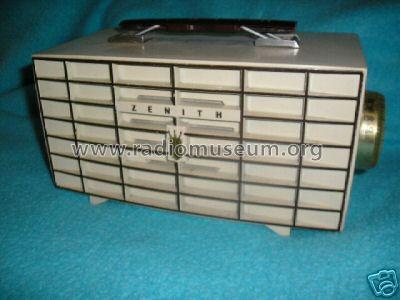

• Model: X-509W Ch=5R05 - Zenith Radio Corp.; Chicago,

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Hans Amberger. See "Data change" for further contributors.
