• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85111

• • alternative name: Chicago Radio Lab

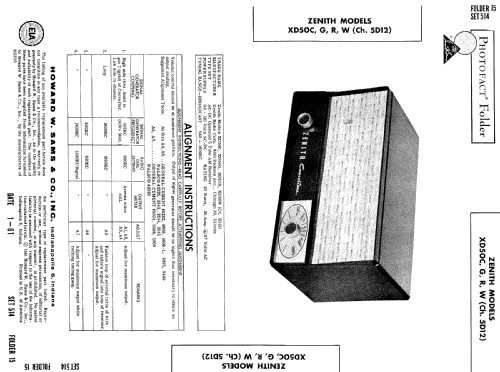

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: XD50R Ch= 5D12 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• The Zenith Modell XD50R is an AC/DC Operated 5 Tube AM Receiver.
  4" x 6" PM elliptical speaker.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 21, 1961

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 1-61, Set 514, Folder 15)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
