Y1816E Ch= 16Y20

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1955/1956

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
277114

- alternative name: Chicago Radio Lab

Schematics

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933378) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933379) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933380) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933381) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933382) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933383) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933384) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933385) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933386) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

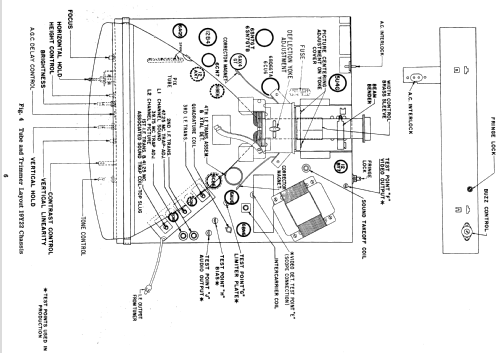

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933387) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933388) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933389) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933390) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933391) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933392) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933393) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933394) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933395) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933396) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933397) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933398) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933399) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933400) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933401) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933402) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933403) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933404) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933405) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933406) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1933407) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (3)

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 1990083) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (2)
Copy from Zenith folder.

Y1816E Ch= 16Y20; Zenith Radio Corp.; (ID = 2809341) Television — Zenith Radio Corp.; Y1816E Ch= 16Y20 (2)
Zenith Print Ad

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
16

Valves / Tubes
5BK7A 5U8 3CB6 3CB6 3CB6 6AU8 3BN6 5AQ5 3BU8 6CM7 6CN7 6CG7 12DQ6 1B3GT 12AX4GTA 17AVP4 or 17AVP4A

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 cycles, 110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Power out
1.3 W (1.6 W max.)

Material
Various materials

from Radiomuseum.org
Model: Y1816E Ch= 16Y20 - Zenith Radio Corp.; Chicago,

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
20.25 x 13.75 x 16.5 inch / 514 x 349 x 419 mm

Notes
The Zenith Y1816E is a 17" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis 16Y20, VHF tuner S-24382 and picture tube 17AVP4 or 17AVP4A.

Two-tone decorator color combinations:
Y1816E in Satin Silver top and Ecru Beige linen bottom
Y1816C in Charcoal top and Cordex gray bottom colors
Y1816R in solid Maroon colors

Stand with casters at extra cost

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 333, folder 17)

Literature/Schematics (2)
Zenith Service Manual - 1956 Television Receivers TV-16

Literature/Schematics (3)
Photofact Folder, Howard W. SAMS (Set 312 Folder 12-S dated 1956)

Author
Model page created by John Kusching. See "Data change" for further contributors.
