Y2220R Ch= 17Y20

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1956

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
278744

- alternative name: Chicago Radio Lab

Schematics

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 2169455) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

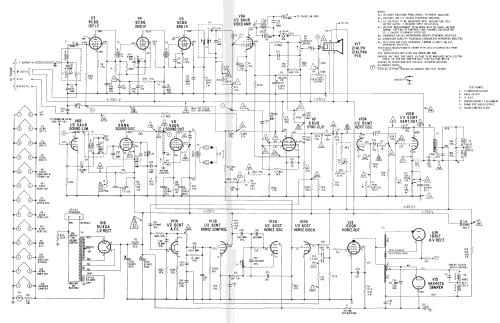

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 2169456) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969893) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969894) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969895) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969896) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969897) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969898) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969899) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969900) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969901) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969902) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969903) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969904) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969905) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969906) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969907) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969908) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969909) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969910) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969911) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969912) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969913) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969914) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969915) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969916) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969917) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969918) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969919) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1969920) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (3)

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 1956785) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (2)
Picture from service manual.

Y2220R Ch= 17Y20; Zenith Radio Corp.; (ID = 2809365) Television — Zenith Radio Corp.; Y2220R Ch= 17Y20 (2)
Zenith Print Ad

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
17

Valves / Tubes
6BK7A 6U8 6CB6 6CB6 6CB6 6AU8 6BN6 6AQ5 6BU8 6CM7 6CN7 6CG7 6DQ6 6AX4GT 1B3GT 5U4GA 21ALP4A

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Y2220R Ch= 17Y20 - Zenith Radio Corp.; Chicago,

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
22.75 x 18.5 x 20.5 inch / 578 x 470 x 521 mm

Notes
The ZENITH model Y2220R is a 21" b/w TV with US standard VHF Tuner channels 2 thru 12 equipped with VHF-tuner S-24392, chassis 17Y20 and picture tube 21ALP4A.

Zenith 21 Series Table television The Plaza Y2220

Y2220R - Metal cabinet in solid Maroon Color

built in carry handles

Also available:
Y2220Y - Metal cabinet in solid Ebony color

Swivel stand at extra cost

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 335 Folder 19 dated 10-56)

Literature/Schematics (2)
Zenith Service Manual - 1956 Television Receivers TV-16

Literature/Schematics (3)
Photofact Folder, Howard W. SAMS (Set 313 Folder 15-S)

Author
Model page created by Dirk Taekels. See "Data change" for further contributors.
