Y2230R Ch= 19Y22

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1956

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
277960

- alternative name: Chicago Radio Lab

Schematics

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 2176701) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 2176702) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1945170) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1945171) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1945172) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1945173) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1945174) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1945667) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1945668) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1945669) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1945670) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1945671) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1945672) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

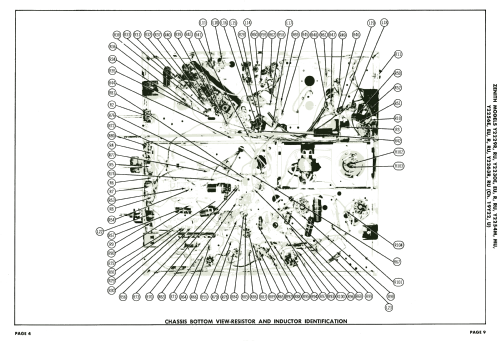

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1945673) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1945674) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1945675) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1945676) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1991303) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1991304) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1991305) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1991306) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1991307) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1991308) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1991309) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1991310) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

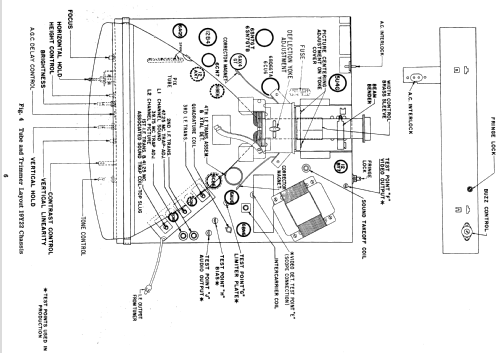

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1991311) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1991312) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1991313) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1991314) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1991315) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (3)

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 1945169) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (2)
Picture from service manual.

Y2230R Ch= 19Y22; Zenith Radio Corp.; (ID = 2809537) Television — Zenith Radio Corp.; Y2230R Ch= 19Y22 (2)
Zenith Print Ad

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
19

Valves / Tubes
6BK7A 6U8 6CB6 6CB6 6CB6 12BY7 12AX7 6AU6 6BU6 6AQ5 6BE6 12B4A 6CN7 6SN7GTB 6BQ6GA 6AX4GT 1B3GT 5U4GA 21ALP4B

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 cycles, 110-120 Volt

Loudspeaker
2 Loudspeakers / Ø 5.25 inch = 13.3 cm

Material
Wooden case

from Radiomuseum.org
Model: Y2230R Ch= 19Y22 - Zenith Radio Corp.; Chicago,

Shape
Console, Lowboy (legs < 50 %).

Dimensions (WHD)
22.75 x 20.5 x 20.5 inch / 578 x 521 x 521 mm

Notes
The ZENITH model Y2230R is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, equipped with VHF-tuner S-21735 or S-23113, chassis 19Y22 and picture tube 21ALP4B. 2x PM speaker 5.25 inch in Front and 1x PM Speaker in side of cabinet.

21 Series Table Television THE BERKELEY Y2230R with 3 Speakers (Alnico 5)
Zenith THE BERKELEY Y2230R - Cabinet in grained Mahogany color

Zenith THE BERKELEY Y2230E - Cabinet in grained Blond Oak color

Matching base at extra cost

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 334 Folder 13 dated 10-56)

Literature/Schematics (2)
Zenith Service Manual - 1956 Television Receivers TV-16

Literature/Schematics (3)
Photofact Folder, Howard W. SAMS (Set 314 Folder 13-S)

Author
Model page created by Dirk Taekels. See "Data change" for further contributors.
