Y2247R Ch= 17Y22

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1955/1956

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
278807

- alternative name: Chicago Radio Lab

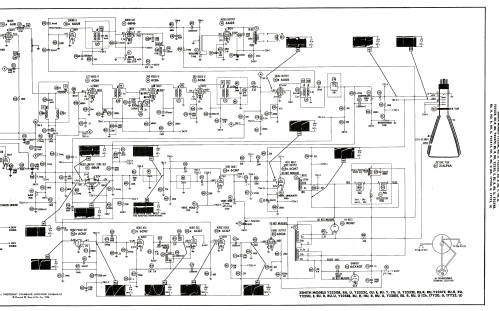

Schematics

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 2169746) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 2169747) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1957537) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1957538) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1957539) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1957540) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1957541) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1958201) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1958203) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1958204) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1958205) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1958206) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1958207) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1958209) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1958212) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1958213) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1991796) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1991797) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1991798) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1991799) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1991800) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1991801) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1991802) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1991803) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1991804) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1991805) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1991806) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1991807) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1991808) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 1991809) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (3)

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 2152492) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (2)
Zenith TV model Y2247. Copy from brochure.

Y2247R Ch= 17Y22; Zenith Radio Corp.; (ID = 2809631) Television — Zenith Radio Corp.; Y2247R Ch= 17Y22 (2)
Zenith Print Ad

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
17

Valves / Tubes
6BK7A 6U8 6CB6 6CB6 6CB6 6AU8 6BN6 6AQ5 6BU8 6CM7 6CN7 6CG7 6DQ6 6AX4GT 1B3GT 5U4GA 21ALP4A

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 inch = 19.1 cm

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Y2247R Ch= 17Y22 - Zenith Radio Corp.; Chicago,

Shape
Console, Lowboy (legs < 50 %).

Dimensions (WHD)
23.5 x 36 x 20.375 inch / 597 x 914 x 518 mm

Notes
The ZENITH model Y2247R is a 21" b/w TV with US standard VHF Tuner channels 2 thru 12 equipped with VHF-tuner S-24392, chassis 17Y22 and picture tube 21ALP4A.

Zenith 21 Series Television Console Model THE FAIRMONT Y2247R
Cabinet in grained Mahogany color

Easy out face plate glass

See also:
Zenith THE FAIRMONT Y2247 - in grained Walnut color
Zenith THE FAIRMONT Y2247E - in grained Blond Oak color

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 335 Folder 19 dated 10-56)

Literature/Schematics (2)
Zenith Service Manual - 1956 Television Receivers TV-16

Literature/Schematics (3)
Photofact Folder, Howard W. SAMS (Set 313 Folder 15-S)

Author
Model page created by Dirk Taekels. See "Data change" for further contributors.
