Y2254MU Ch= 19Y22U

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1956

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
278056

- alternative name: Chicago Radio Lab

Schematics

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 1945741) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 1945742) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 1945743) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 1945744) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 1945745) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 1946825) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 1946826) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 1946827) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 1946828) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 1946829) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 1946830) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 1946831) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 1946832) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 1946833) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 1946834) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 2116206) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 2116207) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 2116208) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 2116209) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 2116210) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 2116211) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 2116212) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 2116213) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 2116214) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 2116215) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 2116216) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 2116217) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 2116218) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 2116219) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 2116220) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (3)

Y2254MU Ch= 19Y22U; Zenith Radio Corp.; (ID = 1945740) Television — Zenith Radio Corp.; Y2254MU Ch= 19Y22U (2)
Picture from service manual.

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
20

Valves / Tubes
6BK7A 6AF4A 6U8 6CB6 6CB6 6CB6 12BY7 12AX7 6AU6 6BN6 6AQ5 6BE6 12B4A 6CN7 6SN7GTB 6BQ6GA 6AX4GT 1B3GT 5U4GA 21ALP4B

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 cycles, 110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

Material
Wooden case

from Radiomuseum.org
Model: Y2254MU Ch= 19Y22U - Zenith Radio Corp.; Chicago,

Shape
Console, Lowboy (legs < 50 %).

Notes

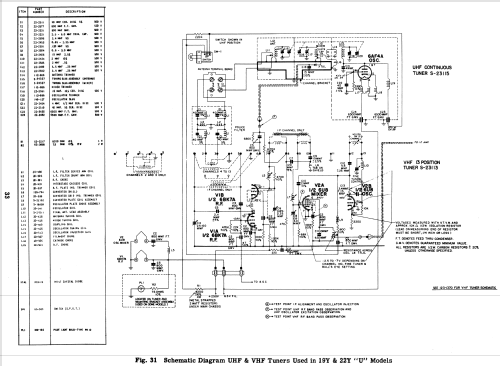

The ZENITH Y2254MU is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with VHF-tuner S-23113, UHF-tuner S-23115, chassis 19Y22U and picture tube 21ALP4B.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 334 Folder 13 dated 10-56)

Literature/Schematics (2)
Zenith Service Manual - 1956 Television Receivers TV-16

Author
Model page created by Dirk Taekels. See "Data change" for further contributors.
