Y2670R Ch= 17Y23

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1955/1956

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
282390

- alternative name: Chicago Radio Lab

Schematics

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117940) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

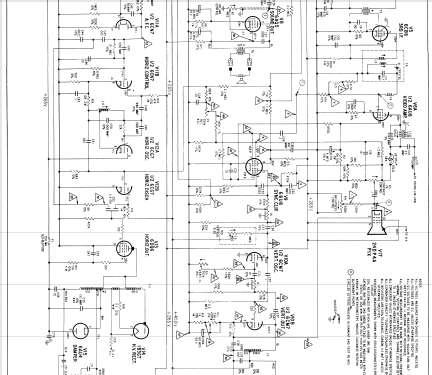

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117941) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117942) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117943) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117944) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117945) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117946) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117947) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117948) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117949) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117950) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

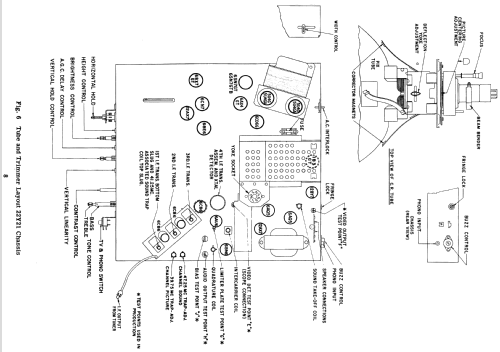

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117951) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117952) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117953) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117954) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117955) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117956) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117957) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117958) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117959) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117960) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117961) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117962) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117963) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117964) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117965) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117966) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117967) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117968) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

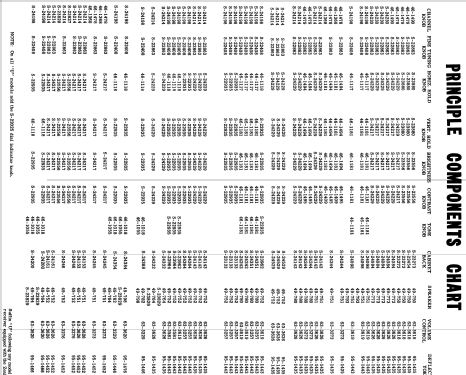

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2117969) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (3)

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2005223) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (2)
Picture from service manual.

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2100685) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (2)
USA_Zenith_model Y2670 copy from folder.

Y2670R Ch= 17Y23; Zenith Radio Corp.; (ID = 2809662) Television — Zenith Radio Corp.; Y2670R Ch= 17Y23 (2)
Zenith Print Ad

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
17

Valves / Tubes
6BK7A 6U8 3CB6 3CB6 3CB6 6AU8 6BN6 6AQ5 6BU8 6CM7 6CN7 6CG7 6DQ6 1B3GT 6AU4 5U4GA 24DP4A

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 cycles, 110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

Power out
1.3 W (1.6 W max.)

Material
Wooden case

from Radiomuseum.org
Model: Y2670R Ch= 17Y23 - Zenith Radio Corp.; Chicago,

Shape
Console, Lowboy (legs < 50 %).

Dimensions (WHD)
29.25 x 38.625 x 22.375 inch / 743 x 981 x 568 mm

Notes
The Zenith Y2670R is a 24" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis 17Y23, VHF tuner S-24392 and picture tube 24DP4A.

Zenith 24 Series Television Console Model THE GOTHAM Y2670R
Cabinet in grained Mahogany color

Easy out face plate glass
Built-in antenna

See also:
Zenith 24 Series Television Console Model THE GOTHAM Y2670E
Cabinet in grained Blond Oak color

Literature/Schematics (1)
Zenith Service Manual - 1956 Television Receivers TV-16
