Y2672EU Ch= 22Y21U

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1955/1956

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
272938

- alternative name: Chicago Radio Lab

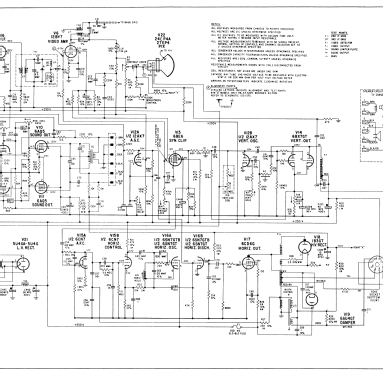

Schematics

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880051) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880052) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880053) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880054) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880055) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880056) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880353) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880354) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880355) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880356) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880357) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880358) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880359) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880360) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880361) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880362) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880363) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880364) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880365) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880366) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880367) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 2181862) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 2181863) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 2181864) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 2181865) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 2181866) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 2181867) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 2181868) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 2181869) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 2181870) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (3)

Y2672EU Ch= 22Y21U; Zenith Radio Corp.; (ID = 1880050) Television — Zenith Radio Corp.; Y2672EU Ch= 22Y21U (2)
Picture from service manual.

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
23

Valves / Tubes
6BK7A 6U8 6AF4 6AU6 6BN6 12AX7 6AQ5 6CB6 6CB6 6CB6 12BY7 12AX7 6BE6 6BX7GT 6CN7 6CN7 6SN7GTB 6CD6GA 5U4GA 5U4GA 1B3GT 6AU4GTA 24CP4A

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 cycles, 110-120 Volt

Loudspeaker
3 Loudspeakers

Material
Wooden case

from Radiomuseum.org
Model: Y2672EU Ch= 22Y21U - Zenith Radio Corp.; Chicago,

Shape
Console, Lowboy (legs < 50 %).

Notes
The ZENITH model Y2672EU is a 24" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis 22Y21U, VHF tuner S-23113, UHF tuner S-23115 and picture tube 24CP4A..
Speakers : 1xPM, 2x electrostatic.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 330 Folder 12 Dated 9-56)

Author
Model page created by Dirk Taekels. See "Data change" for further contributors.
