Y723G Ch= 7Y04
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 82342
-
- alternative name: Chicago Radio Lab

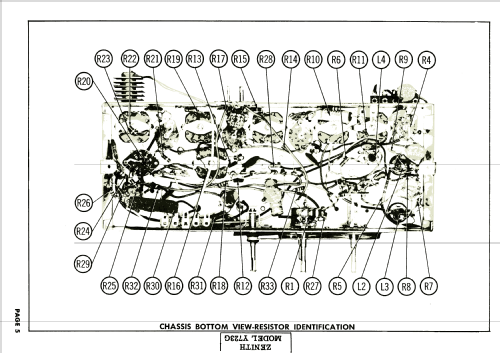

Picture from servic manual.
RECONSTRUCTED LABEL
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- Selengleichrichter
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Y723G Ch= 7Y04 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 13 x 7.75 x 7.25 inch / 330 x 197 x 184 mm
- Notes
-
AC-DC Operated FM - AM Superheterodyne Receiver.Selenium Rectifier.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 16, 1956
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 338 Folder 11 dated 11-56)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
- Other Models
-
Here you find 4496 models, 4101 with images and 3615 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Zenith Radio Corp.; Chicago, IL
