• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77613

• • alternative name: Westinghouse El. Int.

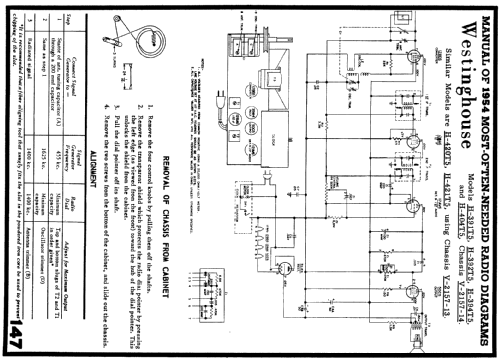

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: H-394T5 Ch= V-2157-14 )V215714) - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 14, 1954 (- - -)

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.

• Other Models

• Here you find 3151 models, 1750 with images and 2667 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Westinghouse El. & Mfg. Co. - see also Canadian W.
