Z1814YU Ch= 16Z20

• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1956/1957

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 257549

• • alternative name: Chicago Radio Lab

• Picture

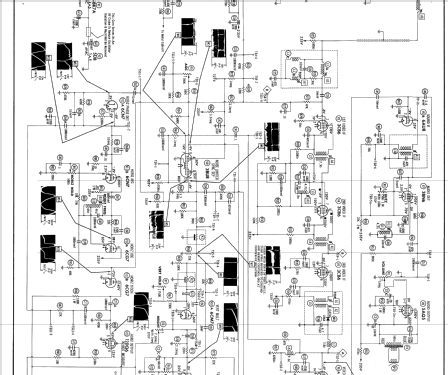

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 5BK7A 5U8 2AF4A 3CB6 3CB6 3CB6 6AU8 3BN6 5AQ5 3BU8 6CM7 6CN7 6CG7 12DQ6 1B3GT 12AX4GTA 17AVP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1.3 W (1.6 W max.)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Z1814YU Ch= 16Z20 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• The Zenith Z1814YU is a 17" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis 16Z20 and picture tube 17AVP4.

  The following models make up the Z1814 family of televisions:

  Model	Channels	Cabinet Color
  Z1814R	VHF only	Mahogany
  Z1814RU	VHF and UHF	Mahogany
  Z1814Y	VHF only	Ebony
  Z1814YU	VHF and UHF	Ebony



• Literature/Schematics (1)

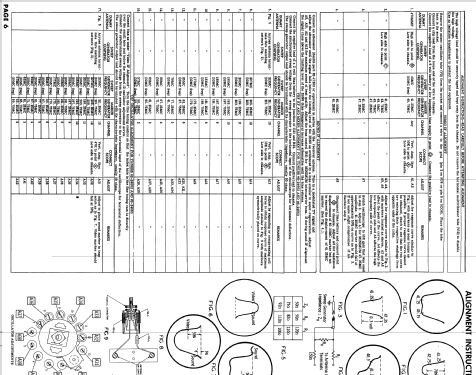

• Photofact Folder, Howard W. SAMS (Set 342, folder 14, Jan. 1957)

• Literature/Schematics (2)
• - - Manufacturers Literature (Zenith 1957 Television Receivers Service Manual TV-17 Dated 5-29-56)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
