Z1816RU Ch= 16Z21

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1956/1957

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
259037

- alternative name: Chicago Radio Lab

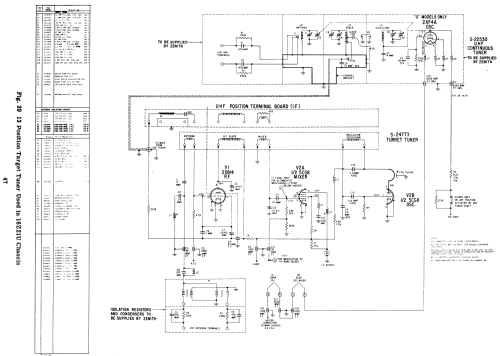

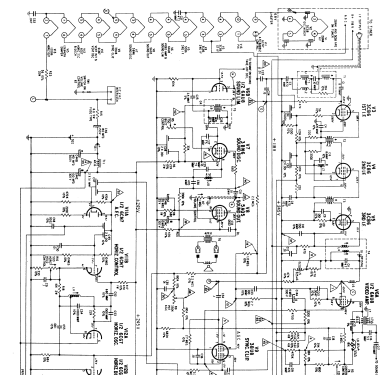

Schematics

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729915) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729916) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729917) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729918) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729919) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729920) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729921) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729922) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729923) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729924) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729925) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729926) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729927) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729928) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729929) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729930) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729931) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729932) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729933) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729934) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729935) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729936) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729937) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729938) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729939) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729940) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729941) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729942) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729943) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1729944) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (3)

Z1816RU Ch= 16Z21; Zenith Radio Corp.; (ID = 1995302) Television — Zenith Radio Corp.; Z1816RU Ch= 16Z21 (2)
copy from folder.

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
17

Valves / Tubes
2BN4 2AF4A 5CG8 3CB6 3CB6 3CB6 6AU8 3BN6 5AQ5 3BU8 6CM7 6CN7 6CG7 12DQ6 1B3GT 12AX4GTA 17AVP4

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 cycles, 110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Power out
1.3 W (1.6 W max.)

from Radiomuseum.org
Model: Z1816RU Ch= 16Z21 - Zenith Radio Corp.; Chicago,

Notes

The Zenith Z1816RU is a 17" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis 16Z21 and picture tube 17AVP4.

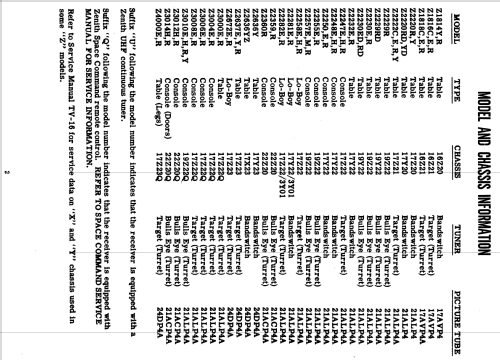

The following models make up the Z1816 family of televisions:

Model	Channels	Cabinet Color
Z1816C	VHF only	Coppertone Mahogany
Z1816CU	VHF and UHF	Coppertone Mahogany
Z1816E	VHF only	Blonde
Z1816EU	VHF and UHF	Blonde
Z1816R	VHF only	Mahogany
Z1816RU	VHF and UHF	Mahogany

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 342, folder 14, Jan. 1957)

Literature/Schematics (2)
- - Manufacturers Literature (Zenith 1957 Television Receivers Service Manual TV-17 Dated 5-29-56)

Author
Model page created by John Kusching. See "Data change" for further contributors.
