Z1817LZ Ch= 15Z31
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 271119
-
- alternative name: Chicago Radio Lab
Copy from folder.

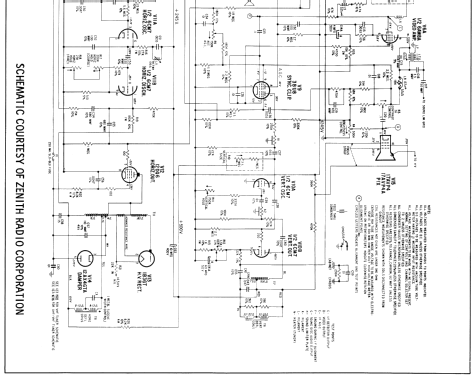

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes
- 2BN4 5CG8 3BZ6 3BZ6 3CB6 6AW8A 3BN6 5AQ5 3BU8 6CM7 6CM7 12DQ6 1B3GT 12AX4GTA 17AVP4 or 17AVP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: Z1817LZ Ch= 15Z31 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The Zenith Z1817LZ is a 17" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis 15Z31, VHF-tuner - S24772 and picture tube 17AVP4 or 17AVP4A.
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 355, Folder 18-S, 1957)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 376 Folder 5 dated 11-57)
- Author
- Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
