Z1817LZU Ch= 15Z31U
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 316122
-
- alternative name: Chicago Radio Lab

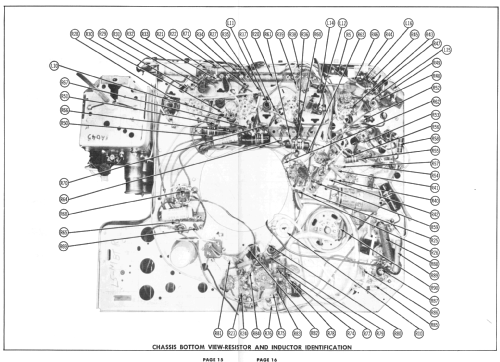

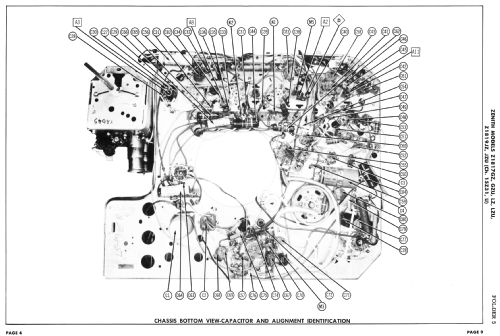

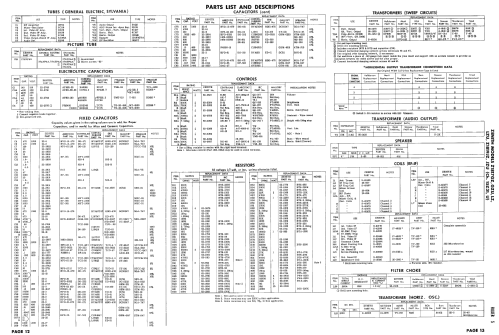

Copy from Zenith Photofact.

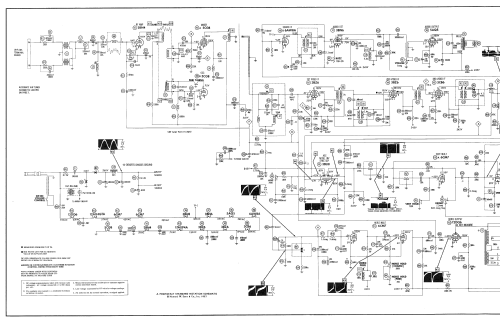

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- 2AF4A 2BN4 5CG8 3BZ6 3BZ6 3CB6 6AW8A 3BN6 5AQ5 3BU8 6CM7 6CM7 12DQ6 1B3GT 12AX4GTA 17AVP4 or 17AVP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: Z1817LZU Ch= 15Z31U - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Notes
-

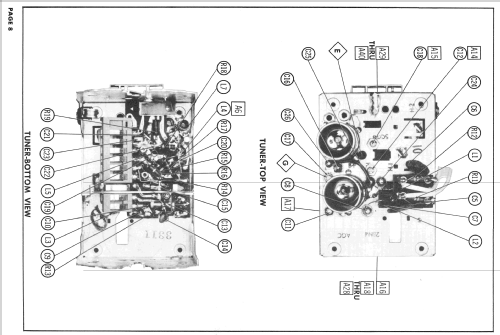

Zenith model Z1817LZU is a 17" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis 15Z31U, VHF-Tuner S-24773, UHF- tuner S-41362 and picture tube 17AVP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 376 Folder 5 dated 11-57)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
