Z1818C Ch= 16Z21

• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1956/1957

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 261342

• • alternative name: Chicago Radio Lab

• Picture

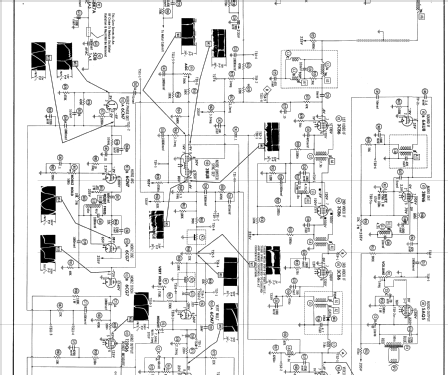

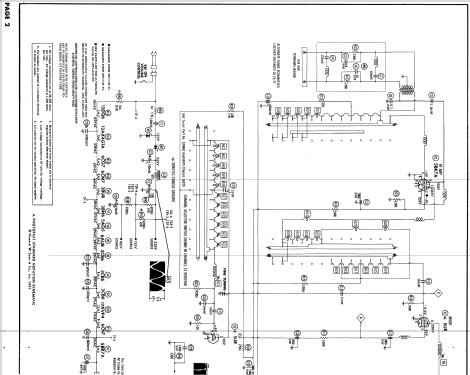

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 2BN4 5CG8 3CB6 3CB6 3CB6 6AU8 3BN6 5AQ5 3BU8 6CM7 6CN7 6CG7 12DQ6 1B3GT 12AX4GTA 17AVP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.3 W (1.6 W max.)

• from Radiomuseum.org
• Model: Z1818C Ch= 16Z21 - Zenith Radio Corp.; Chicago,

• Notes

• The Zenith Z1818C is a 17" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis 16Z21 and picture tube 17AVP4A.

  The following models make up the Z1818 family of televisions:

  Model	Channels	Cabinet Color
  Z1818C	VHF only	Coppertone Mahogany
  Z1818CU	VHF and UHF	Coppertone Mahogany
  Z1818E	VHF only	Blonde
  Z1818EU	VHF and UHF	Blonde
  Z1818R	VHF only	Mahogany
  Z1818RU	VHF and UHF	Mahogany



• Literature/Schematics (1)

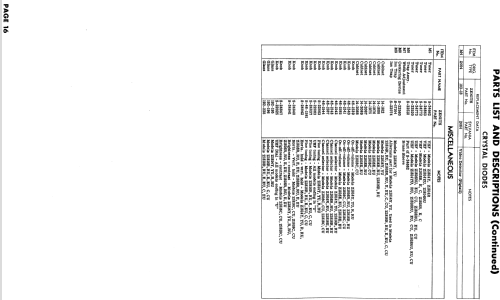

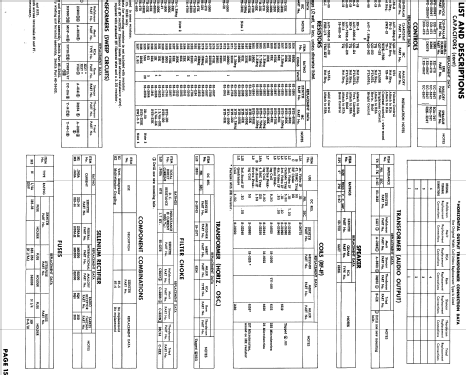

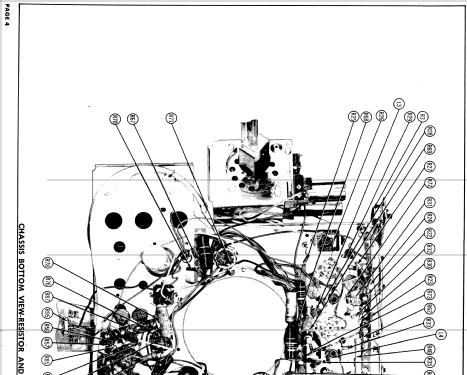

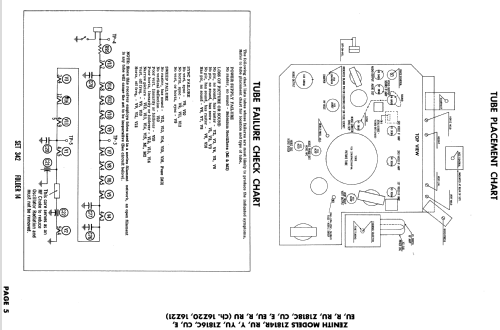

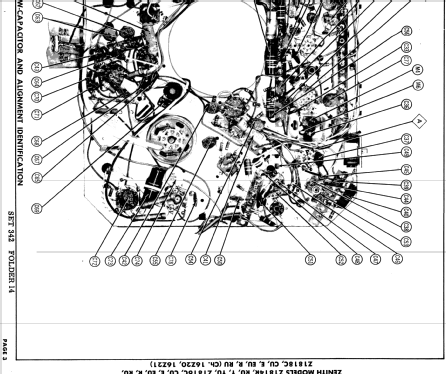

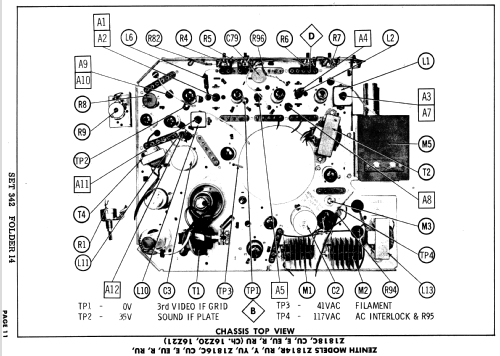

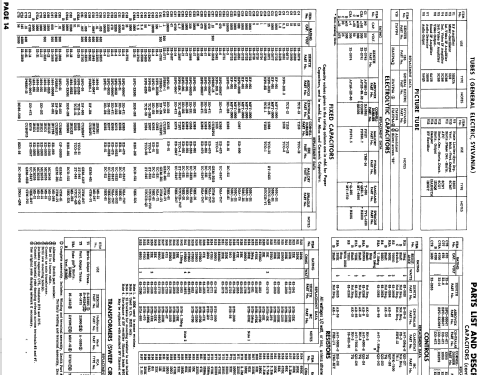

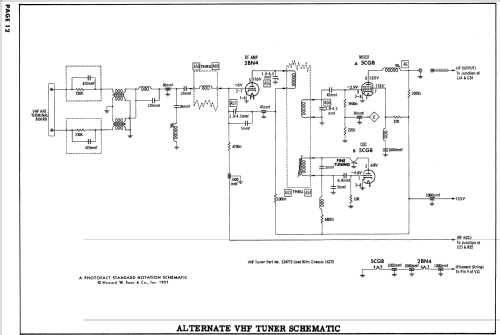

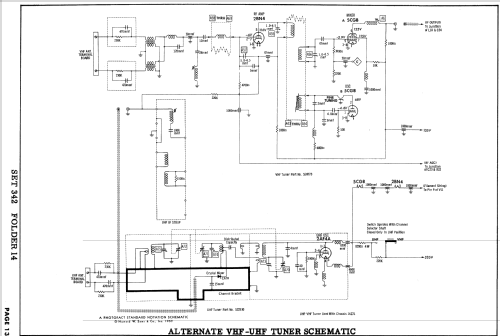

• Photofact Folder, Howard W. SAMS (Set 342, folder 14, Jan. 1957)

• Literature/Schematics (2)
• - - Manufacturers Literature (Zenith 1957 Television Receivers Service Manual TV-17 Dated 5-29-56)

• Literature/Schematics (3)
• Photofact Folder, Howard W. SAMS (Set 330 Folder 13-S Dated 1956)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
