Z2220Y Ch= 17Z20

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1956/1957

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
261463

- alternative name: Chicago Radio Lab

Schematics

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754702) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754703) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

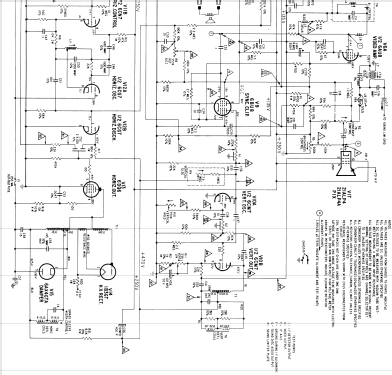

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754704) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754705) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754706) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754707) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754708) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754709) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754710) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754711) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754712) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754713) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754714) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754715) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754716) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754717) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754718) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754719) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754720) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754721) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754722) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754723) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754724) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754725) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754726) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754727) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754728) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754729) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754730) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1754731) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (3)

Z2220Y Ch= 17Z20; Zenith Radio Corp.; (ID = 1978567) Television — Zenith Radio Corp.; Z2220Y Ch= 17Z20 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
17

Valves / Tubes
6BK7A 6U8 3CB6 3CB6 3CB6 6AU8 3BN6 6AQ5 6BU8 6CM7 6CN7 6CG7 6DQ6 1B3GT 6AX4GT or 6AX4GTA 5U4GA or 5U4GB 21ALP4

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 cycles, 110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Power out
1.3 W (1.6 W max.)

from Radiomuseum.org
Model: Z2220Y Ch= 17Z20 - Zenith Radio Corp.; Chicago,

Notes
The Zenith Z2220Y is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis 17Z20 and picture tube 21ALP4.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 343, folder 18 dated 1-57)

Literature/Schematics (2)
- - Manufacturers Literature (Zenith 1957 Television Receivers Service Manual TV-17 Dated 5-29-56)

Author
Model page created by John Kusching. See "Data change" for further contributors.
