Z2232EU Ch= 17Y22U
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1955/1956
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 272602
-
- alternative name: Chicago Radio Lab
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- 6BK7A 6U8 6AF4 3CB6 3CB6 3CB6 6AU8 3BN6 6AQ5 6BU8 6CM7 6CN7 6CG7 6DQ6 1B3GT 6AX4GT or 6AX4GTA 5U4GA or 5U4GB 21ALP4 or 21ALP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.3 W (1.6 W max.)
- from Radiomuseum.org
- Model: Z2232EU Ch= 17Y22U - Zenith Radio Corp.; Chicago,
- Notes
-
The Zenith Z2232EU is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis 17Y22U, VHF tuner S-24393, UHF tuner S-22790 and picture tube 21ALP4 or 21ALP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 335, folder 19 dated 10-56)
- Literature/Schematics (2)

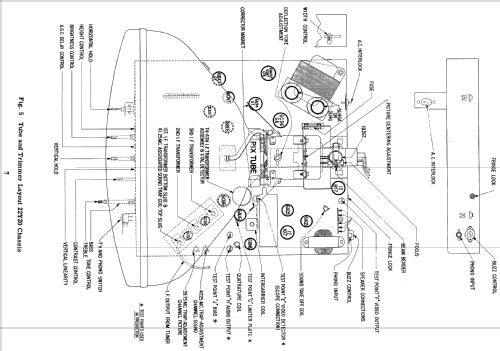

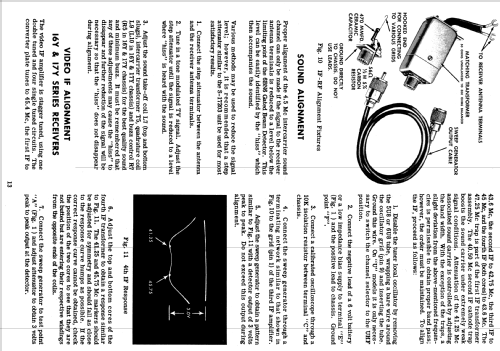

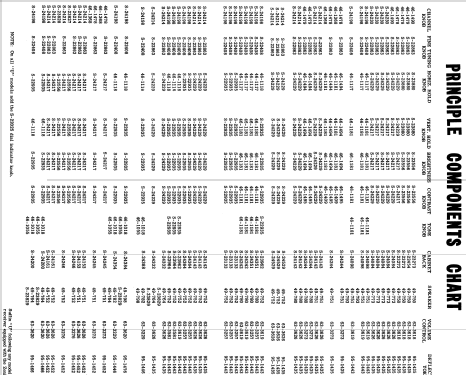

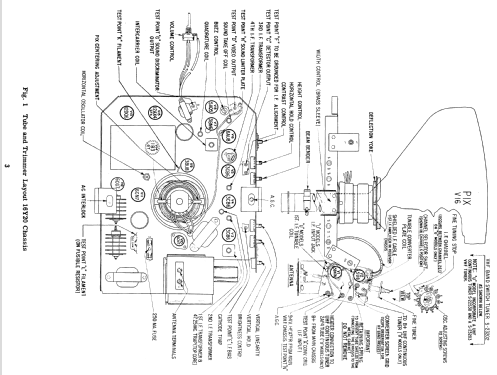

- Zenith Service Manual - 1957 Television Receivers TV-17
- Literature/Schematics (3)
- Zenith Service Manual - 1956 Television Receivers TV-16
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
