• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 353210

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 17EW8 12BE6 12BA6 12BA6 12AU6 14GT8 35C5

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

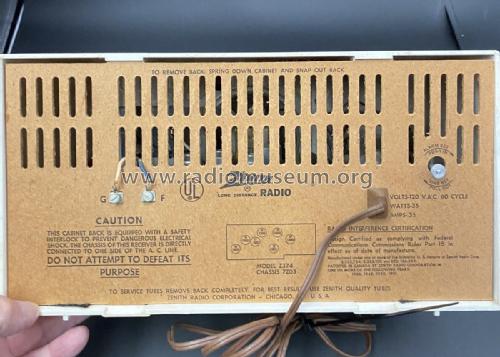

• Model: Z374C, Z374L, Z374W Ch= 7Z03 - Zenith Radio Corp.; Chicago,

• Shape

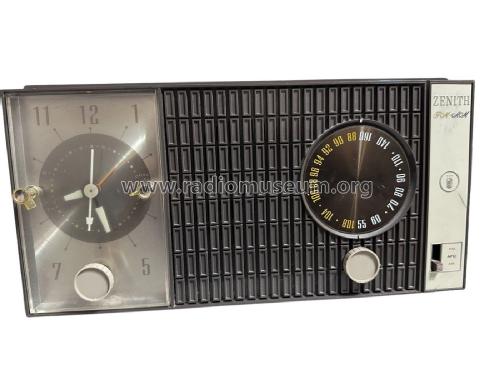

• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• Zenith models Z374C, Z374L, and Z374W have the same chassis, and vary only in cabinet color and other minor cabinet variations.

• Mentioned in
• - - Manufacturers Literature (Zenith Service Bulletin)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 969, Folder 9, July 1968)

• Author
• Model page created by Greg Hubbard. See "Data change" for further contributors.
