Z4006EU Ch= 17Z23QU
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1956/1957
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 269924
-
- alternative name: Chicago Radio Lab
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- 6BN4 6CG8 6AF4 or 6AF4A 3CB6 3CB6 3CB6 6AU8 3BN6 6AQ5 6BU8 6CM7 6CN7 6CG7 6DQ6 1B3GT 6AU4GT or 6AU4GTA 5U4GA or 5U4GB 24DP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.3 W (1.6 W max.)
- from Radiomuseum.org
- Model: Z4006EU Ch= 17Z23QU - Zenith Radio Corp.; Chicago,
- Notes
-
The Zenith Z4006EU is a 24" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis 17Z23QU and picture tube 24DP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 343, folder 18 dated 1-57)
- Literature/Schematics (2)
- - - Manufacturers Literature (Zenith 1957 Television Receivers Service Manual TV-17 Dated 5-29-56)
- Literature/Schematics (3)

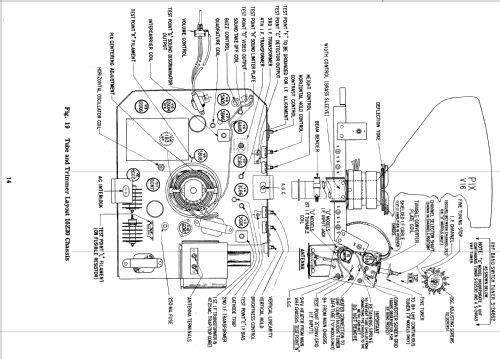

- Zenith Service Manual - Supplement to TV-17 (TV-17S1-RR, for 1957 models) (Dated 10-5-56)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
