- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1969 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 333354
-
- alternative name: Chicago Radio Lab
View of the front of the radio
View of the front of the radio
View of the back of the radio
View with the back off
Copy from my own Zenith broshure.

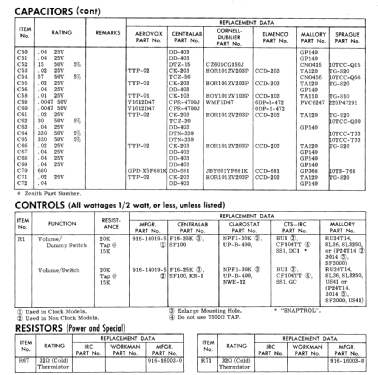

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 12
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 1 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Z468J - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 12 x 4 x 5 inch / 305 x 102 x 127 mm
- Net weight (2.2 lb = 1 kg)
- 4 lb 8 oz (4.5 lb) / 2.043 kg
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 1059, Folder 7, October 1969)
- Author
- Model page created by Lester Troeckler. See "Data change" for further contributors.
