• Country
• Italy

• Manufacturer / Brand
• Zenitron; Torino

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 99236

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1R5 or DK91 1T4 or DF91 1S5 or DAF91 3S4 or DL92 UY41

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage

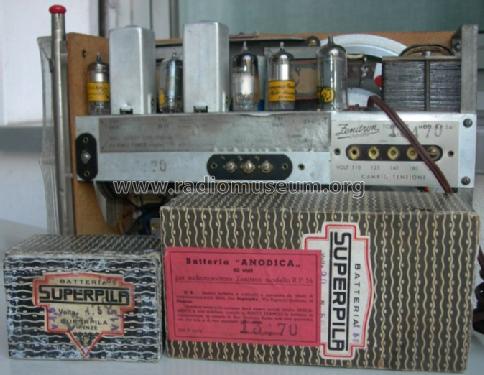

• Line / Batteries (any type) / 110; 125; 140, 160; 220 / 1,5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: RP54-MG - Zenitron; Torino

• Dimensions (WHD)
• 330 x 220 x 140 mm / 13 x 8.7 x 5.5 inch

• Notes

• Gamme d'onda: 2× OM, 2× OC.
  Wave bands: 2x BC, 2x SW.

  Antenna interna, antenna estraibile e presa per antenna esterna.
  In funzionamento normale le due metà del filamento della valvola finale 3S4 sono alimentate entrambe in parallelo a 1,5 V. In funzionamento ridotto viene solo alimentata metà del filamento, sempre a 1,5 V.

• Net weight (2.2 lb = 1 kg)
• 5.6 kg / 12 lb 5.4 oz (12.335 lb)

• Mentioned in
• -- Schematic
