- Country
- United States of America (USA)
- Manufacturer / Brand
- Zephyr Radio Co.; Detroit, MI
- Year
- 1940 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68381

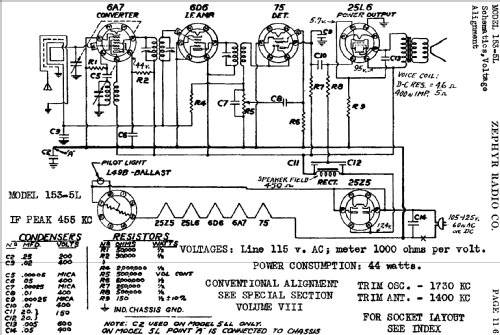

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 153-5L - Zephyr Radio Co.; Detroit, MI
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Other Models
-
Here you find 90 models, 26 with images and 76 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Zephyr Radio Co.; Detroit, MI
