- Country
- United States of America (USA)
- Manufacturer / Brand
- Zephyr Radio Co.; Detroit, MI
- Year
- 1939 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68384

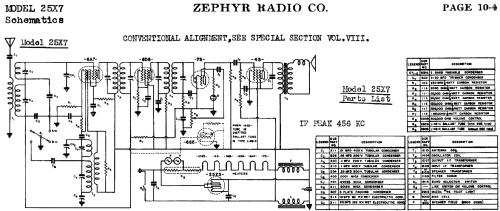

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 25X7 - Zephyr Radio Co.; Detroit, MI
- Shape
- Tablemodel, with any shape - general.
- Notes
- Tuning indicator 6G5 may be omitted.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Mentioned in
- Machine Age to Jet Age III
