- Country
- United States of America (USA)
- Manufacturer / Brand
- Zephyr Radio Co.; Detroit, MI
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68397

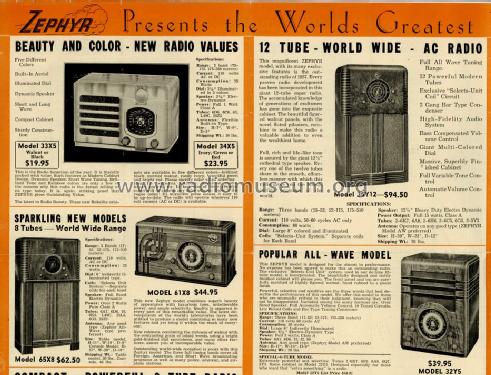

Scanned from the Radio Retailing June 1937.
Scanned from the Radio Retailing June 1937.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12.5 inch = 31.8 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 35Y12 - Zephyr Radio Co.; Detroit, MI
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 23 x 39 x 12 inch / 584 x 991 x 305 mm
- Price in first year of sale
- 94.50 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Radio Retailing (Radio & Television R.) (June 1937.)
- Literature/Schematics (2)
- Pre-War Consoles
- Literature/Schematics (3)
- -- Original prospect or advert (Zephyr Folder new models for 1937.)
