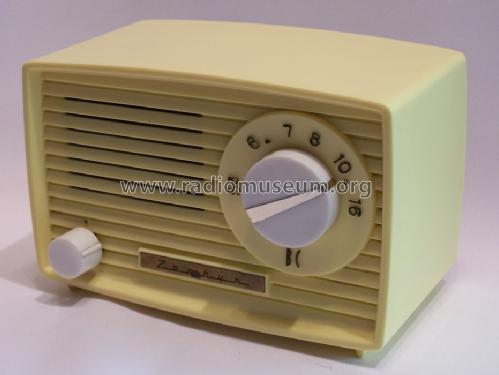

5 Tube Table Radio 1
Zephyr Co., Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Zephyr Co., Ltd.; Tokyo
- Year
- 1962 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 91526

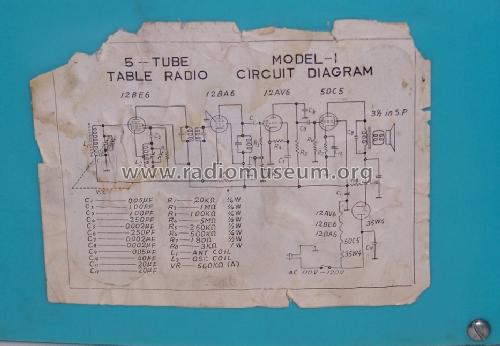

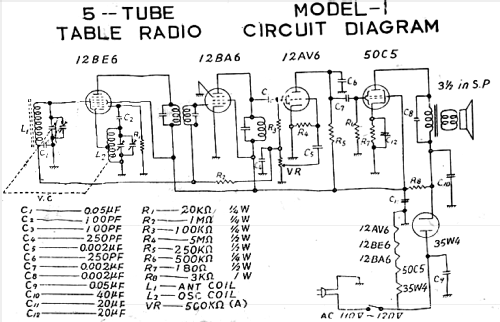

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 5 Tube Table Radio 1 - Zephyr Co., Ltd.; Tokyo
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 6.5 x 4.5 x 3.75 inch / 165 x 114 x 95 mm
- Notes
-
Same as Royal-Star.
