• Country
• Japan

• Manufacturer / Brand
• Zephyr Co., Ltd.; Tokyo

• Year
• 1966 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 256251

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x AA 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.25 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

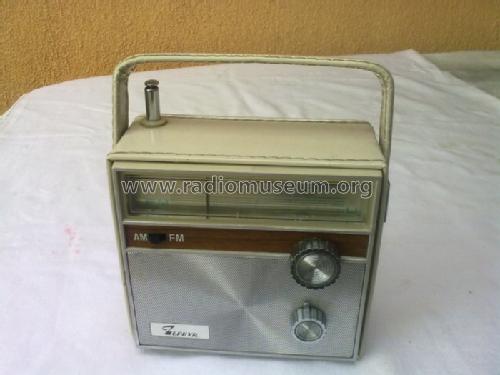

• Model: 9 Transistor Portable AM/FM Radio - Zephyr Co., Ltd.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 150 x 140 x 80 mm / 5.9 x 5.5 x 3.1 inch

• Notes

• Skala zeigt für den MW-Bereich deutsche Sendernamen.

• Author
• Model page created by Mihály Horn. See "Data change" for further contributors.
