Amplificatore Lineare VHF B12-144
Zetagi S.p.A.; Concorezzo, Milano
- Country
- Italy
- Manufacturer / Brand
- Zetagi S.p.A.; Concorezzo, Milano
- Year
- 1975 ??
- Category
- RF (Radio Frequency-) Amplifier
- Radiomuseum.org ID
- 336923
-
- Brand: ZG
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Radio Frequency Amplification only
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Powered by external power supply or a main unit. / 12-14 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Amplificatore Lineare VHF B12-144 - Zetagi S.p.A.; Concorezzo,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 80 x 60 x 90 mm / 3.1 x 2.4 x 3.5 inch
- Notes
-
Amplificatore lineare per VHF da 140 a 170 MHz.
Con ingresso 1,2 Watt FM, PeP SSB fornisce un'uscita di 12 Watt FM, PeP SSB.
Impedenza di ingresso 50 Ω, impedenza di uscita 50 - 75 Ω.
- Price in first year of sale
- 42,000.00 ITL
- Mentioned in

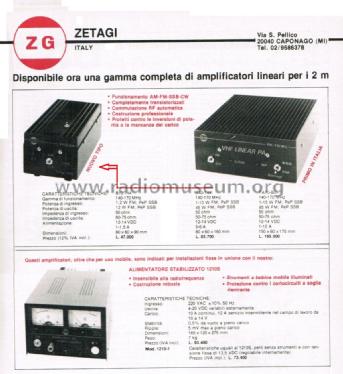

- -- Original prospect or advert (Da: “Radio Rivista” organo ufficiale dell’ARI Italia, numero 7, maggio 1975.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
