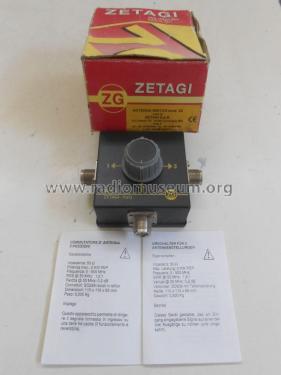

Antenna Switch V3
Zetagi S.p.A.; Concorezzo, Milano
- Country
- Italy
- Manufacturer / Brand
- Zetagi S.p.A.; Concorezzo, Milano
- Year
- 1980 ??
- Category
- Amateur Equipment (Other, but not Key)
- Radiomuseum.org ID
- 296387
-
- Brand: ZG
- Wave bands
- Wave Bands given in the notes.
- Details
- Converter
- Power type and voltage
- No Power needed
- Material
- Metal case
- from Radiomuseum.org
- Model: Antenna Switch V3 - Zetagi S.p.A.; Concorezzo,
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 110 x 110 x 65 mm / 4.3 x 4.3 x 2.6 inch
- Notes
-
impedenza 50Ω - potenza max 2 kW PEP - frequenza: 0/500 MHz - ROS@ 50 MHz:0,2 db - connettori SO239 isolati in teflon. Questo apparecchio permette di dirigere il segnale immesso in ingresso su una delle tre uscite (il funzionamento è reversibile).
Made in Italy.
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
