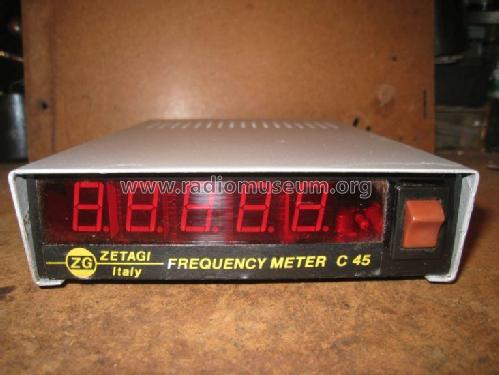

Frequency Meter C45
Zetagi S.p.A.; Concorezzo, Milano
- Country
- Italy
- Manufacturer / Brand
- Zetagi S.p.A.; Concorezzo, Milano
- Year
- 1975 ?
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 268628
-
- Brand: ZG
- Number of Transistors
- 8
- Semiconductors
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Powered by external power supply or a main unit. / 12 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Frequency Meter C45 - Zetagi S.p.A.; Concorezzo,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 118 x 32 x 175 mm / 4.6 x 1.3 x 6.9 inch
- Notes
-

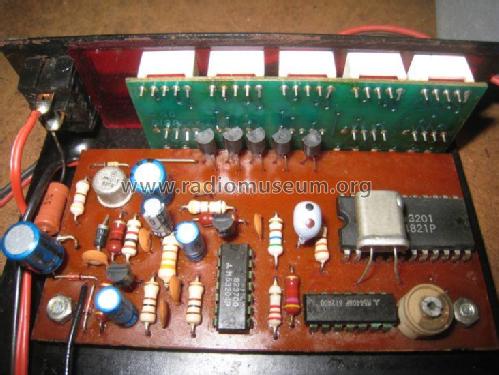

3 IC (M53204P-M54408P-M54821P)
3 diodi
5 digit rossi
frequency range: 0,3 - 45 Mhz
Assorbimento 120 mA
Potenza collegabile: 1- 50 W
- Net weight (2.2 lb = 1 kg)
- 0.850 kg / 1 lb 14 oz (1.872 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
