Miscelatore DX145

Zetagi S.p.A.; Concorezzo, Milano

Data
Forum
Pictures
Collections

  • Year
  • 1990 ??
  • Category
  • Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
  • Radiomuseum.org ID
  • 327408
    • Brand: ZG

 Technical Specifications

  • Main principle
  • RF Converter/Adapter (not voltage converter)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

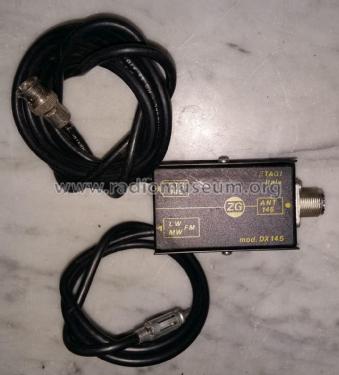

  • Model: Miscelatore DX145 - Zetagi S.p.A.; Concorezzo,
  • Dimensions (WHD)
  • 85 x 30 x 40 mm / 3.3 x 1.2 x 1.6 inch
  • Notes

  • Apparecchio da installare tra il ricetrasmettitore e l'antenna, normalmente per le installazioni su autoveicoli. Separa i segnali VHF, banda 2 metri, 145 MHz, dai segnali radio FM, OM e OL in modo da poter utilizzare, anche in trasmissione l'apparecchio radio AM/FM senza danni al medesimo.
    Potenza massima TX in transito: 100 W.

  • Net weight (2.2 lb = 1 kg)
  • 0.220 kg / 0 lb 7.8 oz (0.485 lb)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
