• Country
• Italy

• Manufacturer / Brand
• Zetagi S.p.A.; Concorezzo, Milano

• Year
• 1978 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 192244

• • Brand: ZG

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220-240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org

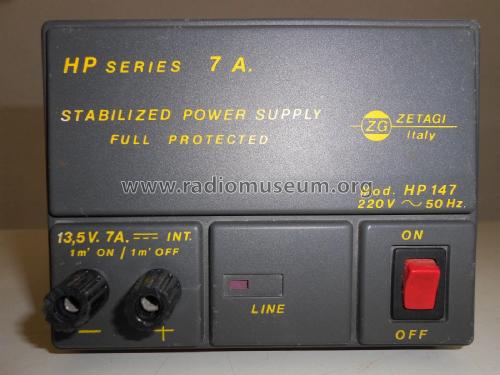

• Model: Stabilized Power Supply 147 - Zetagi S.p.A.; Concorezzo,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 150 x 90 x 170 mm / 5.9 x 3.5 x 6.7 inch

• Notes
• 7 A continuous; 8 A surge; short circuit protection; thermal safety; output 13,5 VDC, nominal 12 VDC; protection by primary fuse 1.6 A.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Emilio Focosi. See "Data change" for further contributors.
